● 16-bit resolution A/D

● Up to 500kHz sampling rate

● 16 single-ended or 8 differential analog inputs

● 10 input ranges, unipolar or bipolar

● A/D starts from software, timer and external trigger

● Single channel or scan A/D modes

● On-board calibration reduces A/D converter offset and gain errors

● Noise reduction with channel oversampling

● Over-voltage protection of -40V to +55V

● 1024 sample data FIFO for A/D

● Two 12-bit D/A outputs and 16 high-current digital I/O lines

● DAC error calibration

● 16-bit programmable counter/timer

● FACTORY OPTIONS:

- FIFO up to 4K sample

- Programmable amplifier with gains of 1, 10, 100, and 1000

- Onboard DC/DC converter enables operation from a single +5V power supply

- Extended temperature operation (-40°C to + 85°C)

- RoHS Available. Please contact us for ordering information

● Equipment monitoring

● Environmental measurements

● Embedded OEM

● Education/Laboratory

● Portable

● Industrial Automation

● Precision Measurement

● Analysis, Monitoring, and Control

Available accessories include a wide variety of cables and screw terminal boards for quick and easy connectivity.

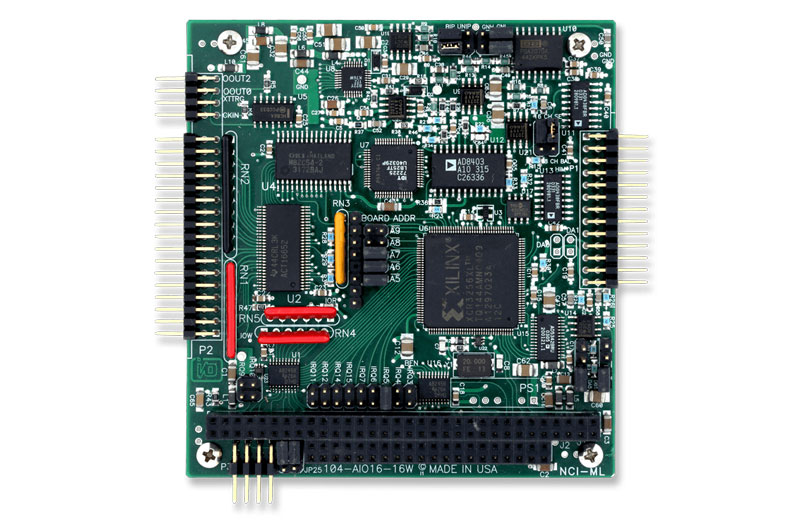

The 104-AIO16A is supported for use in most operating systems and includes a free DOS, Linux and Windows XP -> 10, both 32 & 64 bit compatible software package. This contains sample programs and source code in “C” and Pascal for DOS, and Visual Basic, Delphi, and Visual C++ for Windows. Also included is a graphical setup program in Windows. Linux support includes installation files and basic samples for programming from any user level via an open source kernel driver.
