Mini PCI Express 转 PCIe/104 载板系列产品

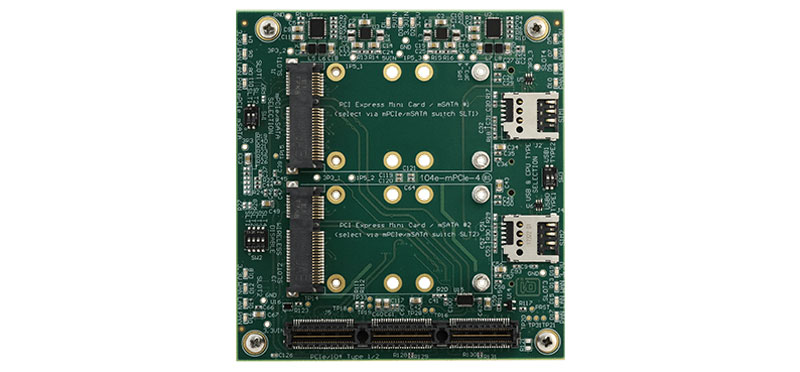

104e-mPCIe-4: PCIe/104 4×4 or 2×2 mPCIe Carrier Boards
FEATURES

● Converts four PCIe x1 lanes from stack into four PCI Express Mini Card sockets

● Supports half- or full-size mPCIe cards, for use in a Type 1 or Type 2 PCIe/104 stack

● All four sockets support USB, SMBUS, micro-SIM, as well as PCI Express signals

● mSATA devices supported on two sockets (Type 2)

● Powered from the PCIe/104 stack +5V rail, no 12V needed

● 2mm standoffs integrated into design for easy installation, hardware included

● RoHS and industrial temp (-40°C to 85°C) standard

● FACTORY OPTIONS

- Top stacking (-TOP) (designed for use on top of stack)

- One Bank connector (-1B)

Applications

● Process Monitoring

● Manufacturing/Production Test

● Machine Control

● Monitoring and Control

● Industrial Automation

● Factory Automation

● Embedded OEM

SOFTWARE

Supported for use in most operating systems including Windows and Linux; embedded OS support includes DOS, XPe, WES7, WES8, IoT, VxWorks, and more.
