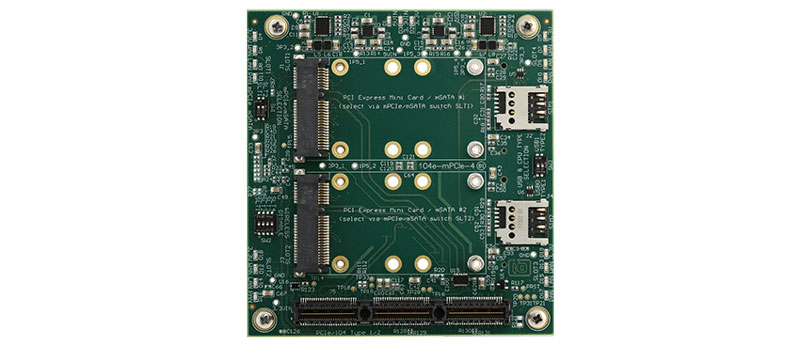

● Converts one PCIe x1 lane from stack into four PCI Express Mini Card sockets
● Supports half- or full-size mPCIe cards, for use in a Type 1 or Type 2 PCIe/104 stack
● All four sockets support USB, SMBUS, micro-SIM, as well as PCI Express signals
● mSATA devices supported on two sockets (Type 2)
● Powered from the PCIe/104 stack +5V rail, no 12V needed
● 2mm standoffs integrated into design for easy installation, hardware included
● RoHS and industrial temp (-40°C to 85°C) standard
● FACTORY OPTIONS
- Top stacking (-TOP) (designed for use on top of stack)
- -TB option allows use on either top or bottom of stack
- One Bank connector (-1B)
● Process Monitoring
● Manufacturing/Production Test
● Machine Control
● Monitoring and Control
● Industrial Automation
● Factory Automation
● Embedded OEM
Supported for use in most operating systems including Windows and Linux; embedded OS support includes DOS, XPe, WES7, WES8, IoT, VxWorks, and more.
