● Ethernet 10/100/1000 Multifunction DAQ

● Sustained sampling speeds up to 1MHz

● 16-bit or 12-bit resolution A/D converter

● Flexible, software configured functionality

● 16 single-ended or 8 differential analog inputs

● 8 input ranges, 4 unipolar and 4 bipolar, channel-by-channel programmable

● Autocalibration and filtering onboard for accurate data

● Four 16-bit analog outputs with 4 factory ranges

● 16 high-current digital I/O lines

● TCP packet interface with Windows DLL API wrapper

● Small, (4″x4″x1.7″) rugged, steel industrial enclosure

● RoHS Standard

● FACTORY OPTIONS:

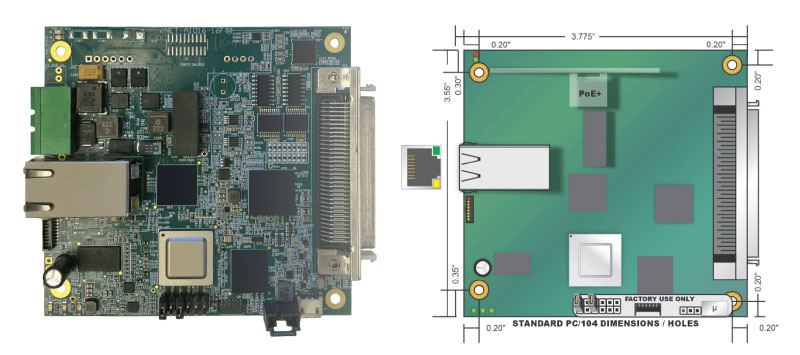

- OEM version (board only), features PC/104 size and mounting compatibility

- Extended Temperature Operation (-40°C to +85°C)

● Industrial Automation

● Embedded OEM

● Portable DAQ

● Laboratory

● Home Automation

● Kiosks

Available accessories include a broad range of ribbon cables, screw terminal boards, ADC submultiplexer boards for higher channel-count, and more. Special order items such as conformal coating, custom software, and more, are also available.

Because of Ethernet’s ubiquitous nature these boards are supported for use in all operating systems — including Windows, Linux, Unix, iOS, Android, — even Raspberry PI, etc. The software package includes free Linux and Windows software with sample programs and source code in C# and Delphi for Windows. Also provided is a graphical setup program in Windows and extensive Ethernet-packet level API documentation. Third party application support includes a Windows standard DLL API usable from most popular application programs. Embedded OS support includes Windows Embedded Standard, and all applications, operating systems, and PLCs and all other devices capable of TCP/IP communication.
