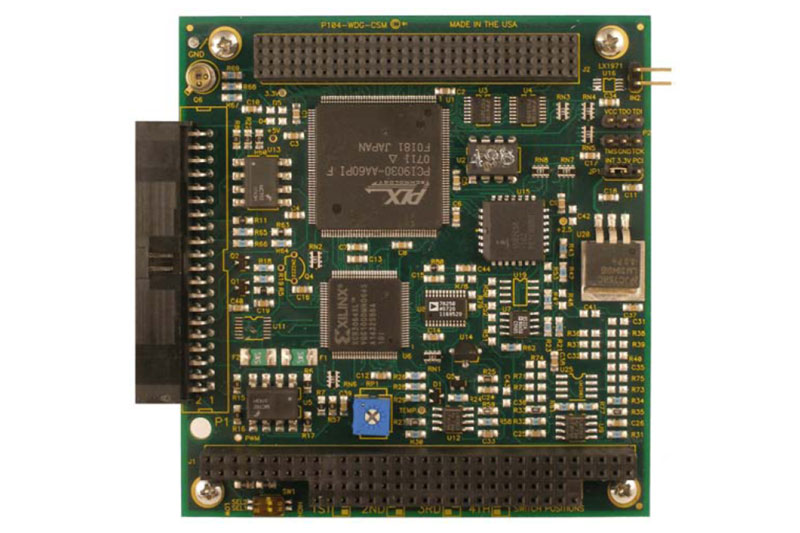

● PC/104 Plus Watchdog Timer card with software selectable timeout from 4 µsec

● Watchdog open collector reset outputs

● Temperature sensor with calibration pot

● Temperature monitor / alarm

● Temperature measurement with 8-bit A/D

● Fan status and speed control

● PCI/104 power monitor / limit alarm interrupt

● Opto-isolated input to trigger reset

● General purpose opto-isolated input

● Two isolated outputs, current limited

● TTL reset pushbutton input

● Two general purpose 8-bit A/D inputs

● External fused 5V and 12V power

● Light sensor for enclosure security

● Supported in DOS, Windows, Linux

● PC/104 bus pass through connector

● RoHS Available. Please contact us for ordering information

● Equipment monitoring

● Environmental measurements

● Embedded OEM

● Education/Laboratory

● Portable

● Industrial Automation

● Precision Measurement

● Analysis, Monitoring, and Control

Sample programs and source code in “C” and Pascal for DOS, and Visual Basic, Delphi and Visual C++ for Windows on CD ships with the hardware you order. Also incorporated for the P104-WDG-CSM is support for use in most operating systems and includes a DOS, Linux, and Windows XP -> 10, both 32 & 64 bit compatible software package. Third party support for watchdog timer consists of a standard dll interface usable from most popular application programs. Linux support consists of installation files and basic samples for programming from user level via an open source kernel driver.
