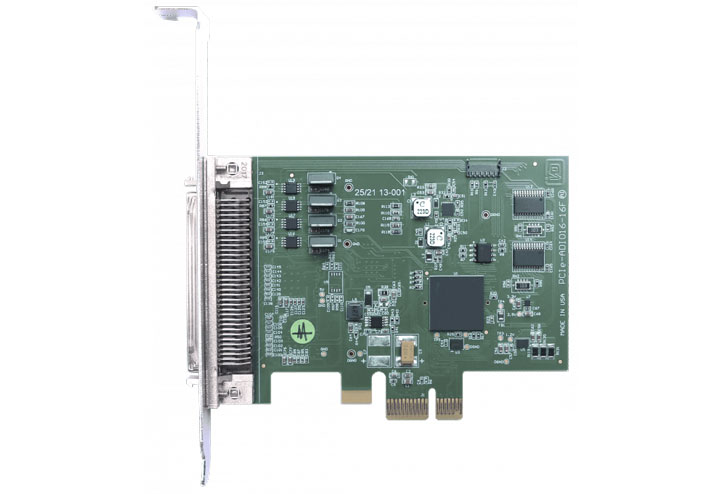

● PCI Express Half-Height/Length with Latching I/O Connector

● 2× 16-Bit, Bipolar, Differential, A/D Converters Sampling at up to 1Mhz, Simultaneously

- Software Selectable as 16+0, 8+4, or 0+8 (Single-Ended + Differential Inputs)

- 7 Channel-By-Channel Programmable Differential Input Ranges from ±0.3125V up to ±12V (48Vp-P)

- A/D Starts Via Software, External Input, or Periodic Timer

- A/D “Scan Start” Mode Optimizes Inter-Channel Timing

- High Impedance, 8-Channel Input: 500 MΩ

- 4 kSample FIFO plus DMA for Efficient, Robust Data Streaming

● 16× Digital I/O Pins with Flexible Secondary Functions

● Four 16-Bit Analog Outputs:

- 5 Per-Channel Programmable Ranges: 0V to 5V, 0V to 10V, ±2.5V, ±5V, ±10V (optional 4-20mA)

- Outputs Drive ±10Ma Guaranteed

- “FDS” model allows hardware-timed DMA+FIFO (8 kSamples) waveform streaming on up to four DACs

● Onboard Watchdog with Dedicated Status Output

● RoHS Compliant

● FACTORY OPTIONS:

- 4-20mA or 10-50mA (Single Ended or Differential) ADC Input Ranges

- 4-20mA Output Range

- Extended Temperature Operation (-40°C to +85°C)

- Support for Wind River VxWorks (call for ordering information)

● Equipment monitoring

● Environmental measurements

● Embedded OEM

● Education/Laboratory

● Industrial Automation

● Precision Measurement

Available accessories include a variety of screw terminal boards for quick and easy connectivity.

● C68PS18L – 68-Pin SCSI 18” shielded cable with one-touch latches

● Analysis, Monitoring, and Control

The card is supported for use in most operating systems and includes a free Linux and Windows compatible software package. This package contains sample programs and source code in C# and Delphi for Windows. Also provided is a graphical setup program in Windows. Linux support includes installation files and basic samples for programming from user level via an open source kernel driver. Third party support includes a Windows standard DLL interface usable from the most popular application programs. Embedded OS support includes the family of Windows Operating Systems including IoT. ACCES is also now offering a VxWorks driver/library for the ultimate real-time process monitoring and control solution.
