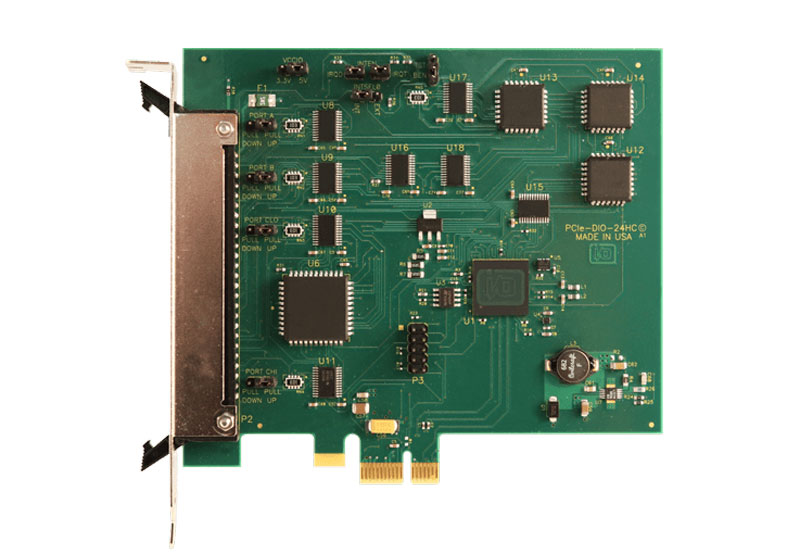

● x1 lane PCI Express Digital I/O board

● 24 high-current DIO lines

● Three 82C54 Counter/Timers

● IRQ generation from Port C bit 3, an external source, and Counter A2, configurable for edge- or level- triggered

● DIO lines buffered

● Four and eight bit ports independently selectable for inputs or outputs

● User configurable 10k ohm Pull-up/Pull-down resistors on DIO lines

● Jumper selectable VCCIO (5V, 3.3V)

● VCCIO voltage available to the user via 0.5A resettable fuse

● Latching 50 pin male header on card mounting bracket for secure cable retention

● FACTORY OPTIONS:

- Extended temperature operation (-40° to +85°C)

- RoHS compliant version

- Support for Wind River VxWorks (call for ordering information)

● Process Monitoring

● Manufacturing/Production Test

● Machine Control

● Monitoring and Control

● Security Systems, Energy Management

● Industrial Automation

● Factory Automation

● Laboratory Automation

● Embedded OEM

The card is supported for use in most operating systems and includes a free DOS, Linux (including macOS), and Windows XP -> 10, both 32 & 64 bit compatible software package. This package contains sample programs and source code in Visual Basic, Delphi, and Visual C++ for Windows. Also provided is a graphical setup program in Windows. Linux support includes installation files and basic samples for programming from user level via an open source kernel driver. Third party support includes a Windows standard DLL interface usable from the most popular application programs, and includes LabVIEW VIs. Embedded OS support includes Windows Xpe, WES7, vxWorks, etc.
