● x1 lane PCI Express Card

● 96 Lines of Digital Input/Output

● Four and Eight Bit Ports Independently Selectable for Inputs or Outputs

● All 96 I/O Lines Buffered by Transceivers on the Card*

● I/O Buffers can be Enabled/Disabled under Program Control

● Pull-Ups resistors on I/O Lines for Contact Monitoring etc.

● +5 VDC Output with Resettable Fuse Available on each I/O Header

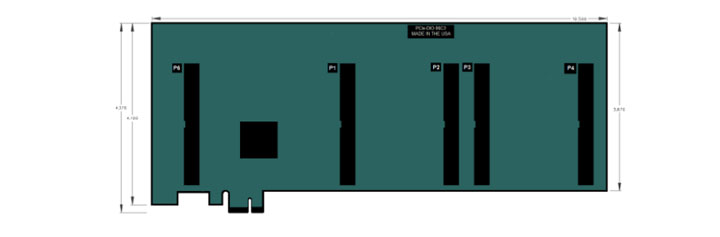

● Four 50 Pin DIO Header Connectors on Board are Compatible with Industry-Standard I/O Racks

● Three Field Configurable 82C54 Counter/Timers on First 50 Pin Header

● Strain Relief for Ribbon Cables Routed through Cutout on Mounting Bracket

● Support for Wind River VxWorks (call for ordering information)

● Process Monitoring

● Manufacturing/Production Test

● Machine Control

● Monitoring and Control

● Security Systems, Energy Management

● Industrial Automation

● Factory Automation

● Laboratory Automation

● Embedded OEM

The card is supported for use in most operating systems and includes a free Linux and Windows compatible software package. This package contains sample programs and source code in Visual Basic, Delphi, and Visual C++ for Windows. Also provided is a graphical setup program in Windows. Linux support includes installation files and basic samples for programming from user level via an open source kernel driver. Third party support includes a Windows standard DLL interface usable from the most popular application programs. Embedded OS support includes the family of Windows Operating Systems including IoT. ACCES is also now offering a VxWorks driver/library for the ultimate real-time process monitoring and control solution.
