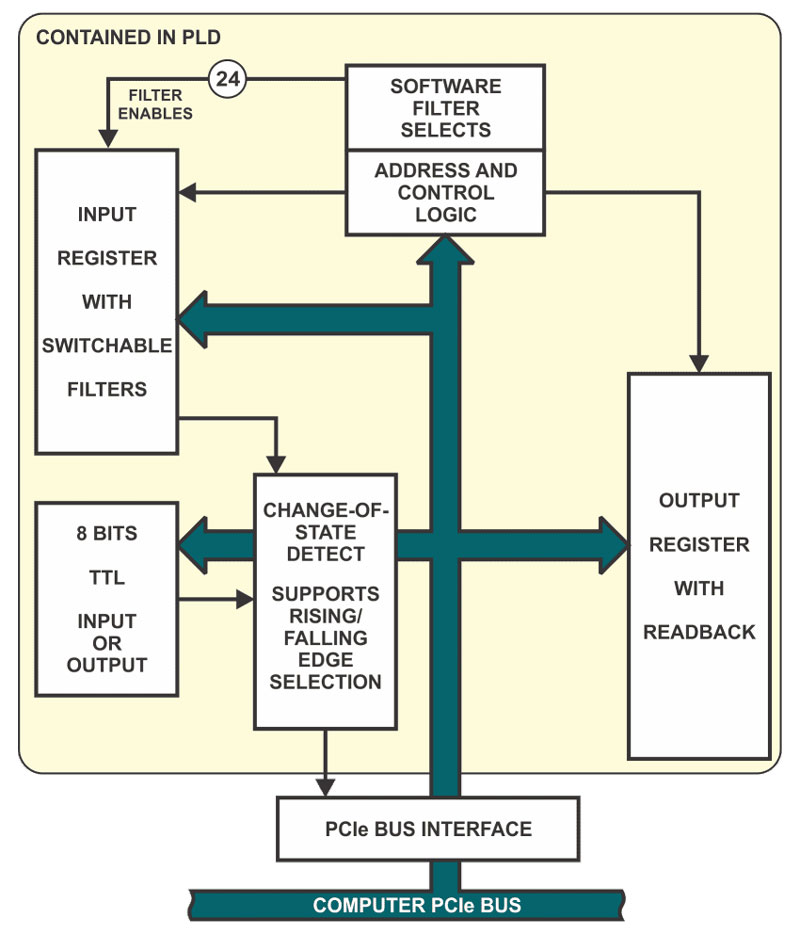

● PCI Express
● Number of inputs: 24
● Type: Non-polarized, optically isolated sharing a common return per 12 channel group (not TTL/CMOS compatible)
● Voltage Range: 3 to 31V DC or 22 VACrms (40-10kHz)
● Isolation: Opto-couplers rated at 2.5kV (see manual)
● Input Resistance: 1.8k ohms in series with two diodes and a photo-coupler LED
● Response Time:
- with filter: 4.7 mSec
- without filter:rise time = 10 uSec；fall time = 30 uSec
● Interrupts: Change of State Detection available on all 32 input bits; software enabled in 8 bit groups; byte-wide pattern recognition
● Number of outputs: 24, Isolated in four, 6-channel groups
● Output Type:
- Smart High Side Power MOSFET,
- Fully Protected (short circuit, over-temp., ESD, inductive flyback)
● Voltage Range:
- 5-34VDC recommended
- (40VDC absolute maximum)
● FET Ratings:
- On-state resistance = 60mΩ
- 2A continuous per FET,
- 9A cumulative total per group of 6 FETs
- Turn-on time: 90uS (typical)
- Turn-off time: 110uS (typical)
● Number of lines: 8, programmable as all ins or all outs
● Type: TTL/CMOS compatible, pulled up to 5V via 10k ohms
● Operating Temperature 0° to +70°C
● Storage Temperature -40° to +105°C
● Humidity 5% to 95% RH, without condensation
● Card Dimensions: Standard Height 4.2″ (106.65 mm), half length 6.6″ (167.6 mm) long
● Connector: DB78 Female Mating Connector: AMPLIMITE 1658674-1 or equivalent
● This product is designed to be in full compliance with CE requirements.
