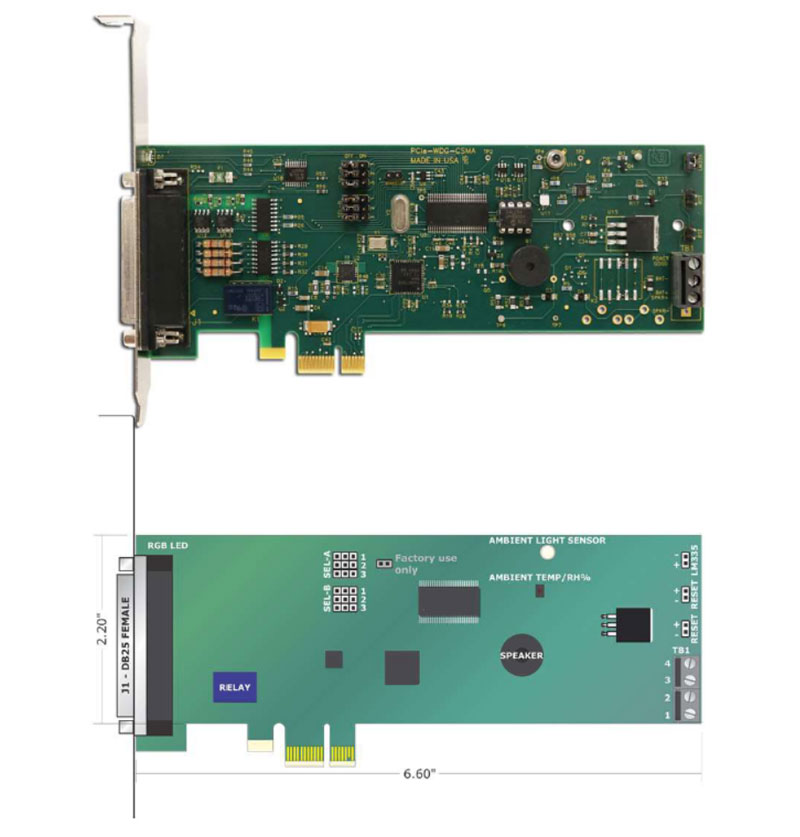

● Low Profile PCI Express watchdog timer and computer status monitor card

● Open collector transistor output to ground power good line or reset switch via pass through upon timeout

● DPDT relay contacts notify external devices when reset signal occurs

● 2 LVTTL outs & 2 LVTTL inputs (5V tolerant)

● DB25 female connector on mounting bracket

● RGB LED at mounting bracket provides at-a-glance status information

● Onboard speaker

● EEPROM for configuration and firmware

● Advanced Model Features：

- Analog to Digital Converter with integrated temperature and humidity sensors and multiplexed inputs

- +12V and +3.3V PCIe Power Monitor

- Ambient light sensor

- External LM335 temperature sensor

- 4 Isolated digital inputs accept up to 31VDC

- 2 Isolated FETs switch from 5 to 34VDC

● FACTORY OPTIONS:

- Extended temperature operation (-35°C to +70°C)

- RoHS compliant versions

- Low Profile mounting bracket

● Process Monitoring

● Manufacturing/Production Test

● Machine Control

● Monitoring and Control

● Security Systems, Energy Management

● Industrial Automation

● Factory Automation

● Laboratory Automation

● Embedded OEM
