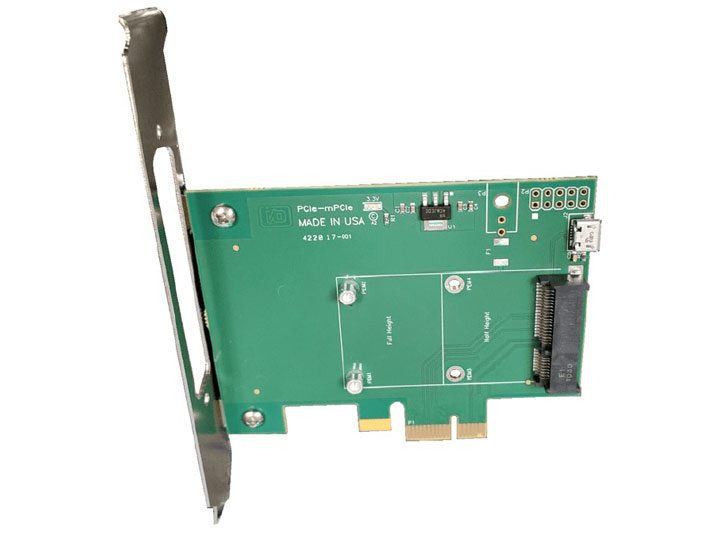

● PCI Express Card (PCIe X1 Lane) to PCI Express Mini Card (mPCIe) Type F1 Adapter

● Supports PCIe, USB and 3.3V/1.5V signals

● DB37 cutout on mounting bracket allows PCIe interface with ACCES I/O’s mPCIe Cards

● USB Micro-B connector for USB signal interfacing

● Extended Temperature (-40°C to +85°C) operation

● RoHS compliant

● FACTORY OPTIONS:

- +12V provided to User via 0.5A fused 2-pin Molex connection

- Assembly of mPCIe-I/O card and cable onto adapter

● Process Monitoring

● Manufacturing/Production Test

● Machine Control

● Monitoring and Control

● Security Systems, Energy Management

● Industrial Automation

● Factory Automation

● Laboratory Automation

● Embedded OEM

The PCIe-mPCIe Adapter is a practical solution for system developers when the target embedded system platform is not yet available, but our PCI Express mini card I/O board is, and you need to get started developing and testing the hardware and software.

The adapter card is supported for use in all operating systems with no driver software needed.
