● Remote intelligent analog output and digital I/O units with opto-isolated RS-485 serial interface to host computer

● Eight 12-bit analog current (4-20mA) and voltage outputs

● Software selectable voltage ranges of 0-5V, 0-10V, ±5V

● Seven bits of digital I/O configured on a bit-by-bit basis as either inputs or high-current outputs.

● Field connections accomplished via 50-pin removable screw terminals.

● Onboard 16-bit 8031 compatible microcontroller with 32K SRAM and EEPROM

● Watchdog circuit for reset on power-up and microprocessor failure

● Protective metal T-Box for high-power model (RDAG12-8H)

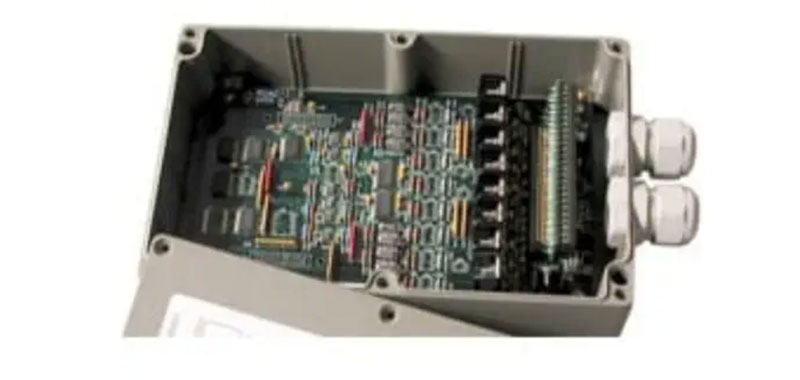

● Protective NEMA4 enclosure for harsh atmospheric and marine environments (RDAG12-8 only)

● High-Power Model can drive loads up to 250mA per channel

● Remote Data Acquisition

● Supervisory Control

● Building Automation

● Direct Digital Control

● Process Monitoring and Control

● Energy Management

● Security Systems

● Relay Control

Drivers for various operating systems are also provided, including active support for Windows XP -> 10 — all in both 32-bit and 64-bit flavors, and including consumer, server, and embedded varieties — as well as the 2.6 and newer Linux kernels and recent OSX / macOS versions. Many products continue to ship with driver support for Windows 95, 98, Me, NT4, and Windows 2000, but support for these operating systems is considered deprecated.
