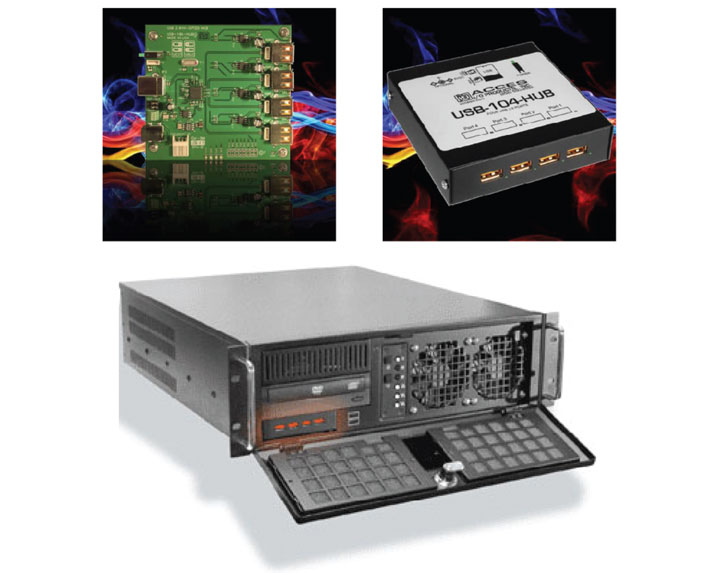

● Rugged, industrialized, four-port USB hub
● High-speed USB 2.0 device, USB 3.0 and 1.1 compatible
● Advanced EFT, Lightning, and ESD protection at ±20kV on all signal pins (air and contact)
● Extended temperature (-40°C to +85°C) for industrial grade applications
● Data transfer rates up to 480 Mbps
● Supports bus powered and self powered modes
● Three power input connectors (power jack, screw terminals, or 3.5″ drive Berg power connector)
● LED status indicators for power and overcurrent fault conditions for each downstream port
● USB/104 form-factor for OEM embedded applications
● OEM version (board only) features PC/104 module size and mounting compatibility
● Includes micro-fit embedded USB header connectors in parallel with all standard USB connectors
● USB connectors feature industrial strength and high-retention design
● Small (4″ x 4″ x 1″), low profile, steel enclosure
● FACTORY OPTIONS：
- OEM (board only) version with PC/104 mounting holes and PCB footprint for added flexibility in embedded applications
- Header connectors with jumper posts for panel mounted user status LED connection
- 3.5” front panel drive bay mounting provision
- Wide Input power from 7VDC to 35VDC at the DC power jack or screw terminals
- RoHS Available.
● Industrial Automation
● Embedded OEM
● Home
● Portable
● Laptop
● Education
● Laboratory
● Kiosk
● Transportation/Automotive
● Military/Government
Available accessories include a wide variety of standard USB cables and mounting provisions for quick and easy-to-use, out of the box, connectivity. Mounting provisions include DIN rail, 3.5″ front panel drive bay mounting, and various panel mounting plates. To make use of the miniature embedded USB header connectors, we offer a variety of embedded micro-fit USB input header cables.
No driver installation is required for the USB-104-IHUB. Any USB compliant operating system will automatically install it. It will enumerate as a Generic Hub which uses the USB Hub Class Driver that is built into USB compliant operating systems such as Linux (including Mac OS X) and Windows.
