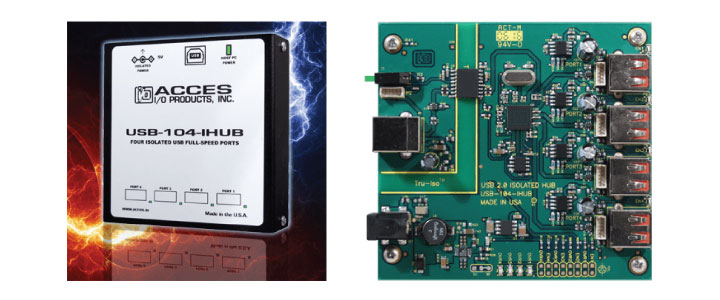

● Rugged, industrialized, four-port USB hub
● Tru-Iso™ signal isolation up to 4kV meets EN60601 standards
● Advanced EFT, Lightning, and ESD protection at ±20kV on all signal pins (air and contact)
● Full-speed USB 2.0 device, USB 3.1 and 1.1 compatible
● Power jack (optional screw terminals)
● Downstream ports capable of low-speed (1.5 Mbps) and full-speed (12 Mbps) transfers aggregate
● LED indicators for power and fault conditions for each downstream port
● Upstream and downstream short-circuit protection
● Industrial grade USB connectors feature high-retention design
● Includes micro-fit embedded USB header connectors in parallel with all standard USB connectors
● Industrial operating temperature (-40°C to +85°C)
● Small (4″ x 4″ x 1″), low profile, steel enclosure
● FACTORY OPTIONS：
- OEM (board only) version with PC/104 mounting holes and footprint for flexibility in embedded applications
- Header connectors with jumper posts for panel mounted user status LED connection
- Wide Input power from 7VDC to 35VDC at the DC power jack or screw terminals
- External power connection via screw terminals (high retention)
- RoHS Available.
● Industrial Automation
● Embedded OEM
● Health and Medical Systems
● Factory Automation
● Process Control
● Transportation/Automotive
● Military/Government
Available accessories include an isolated medical-grade power supply and a wide variety of standard USB cables for quick and easy-to-use, out of the box, connectivity. To make use of the miniature embedded USB header connectors, ACCES offers an assortment of embedded micro-fit USB header cables. Mounting provisions include the MP104-DIN for attaching the device to a standard DIN Rail..
No driver installation is required for the USB-104-IHUB. Any USB compliant operating system will automatically install it. It will enumerate as a Generic Hub which uses the USB Hub Class Driver that is built into USB compliant operating systems such as Linux (including Mac OS X) and Windows.
