● High-speed USB 2.0 multifunction DAQ

● Sustained sampling speeds up to 1MHz

● 16-bit or 12-bit resolution A/D converter

● Flexible, software configured functionality

● 16 single-ended or 8 differential analog inputs

● 8 input ranges, 4 unipolar and 4 bipolar, channel-by-channel programmable

● Autocalibration and oversampling for real-time accurate data

● A/D starts via software, timer, or external trigger

● Two or four 16-bit analog outputs; 4kHz update rate

● 16 high-current digital I/O lines

● Alternate micro-fit embedded USB header connector

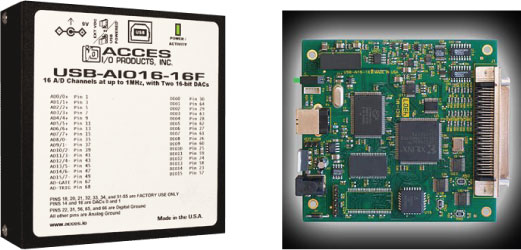

● USB/104 form-factor for OEM embedded applications

● Small, (4″ x 4″ x 1.25″) rugged industrial enclosure

● All required power drawn from USB port, no external power adapter required

● Industrial strength and high-retention Type B USB connector

● Onboard Watchdog Timer，Configurable power-on defaults

● Digital input debouncing and latching

● Digital output Pulse Width Modulation (PWM) and Matrix Mapping

● Industrial operating temperature (-40°C to +85°C)

● Single-ended current inputs (4-20mA or 10-50mA)，Voltage dividers per input

● Support for Wind River VxWorks (call for ordering information)

● Equipment monitoring

● Environmental measurements

● Embedded OEM

● Education/Laboratory

● Portable

● Industrial Automation

● Precision Measurement

● Analysis, Monitoring, and Control

● Available accessories include a wide variety of cables and screw terminal boards for quick and easy connectivity. Also, a DIN rail mounting provision is available.
