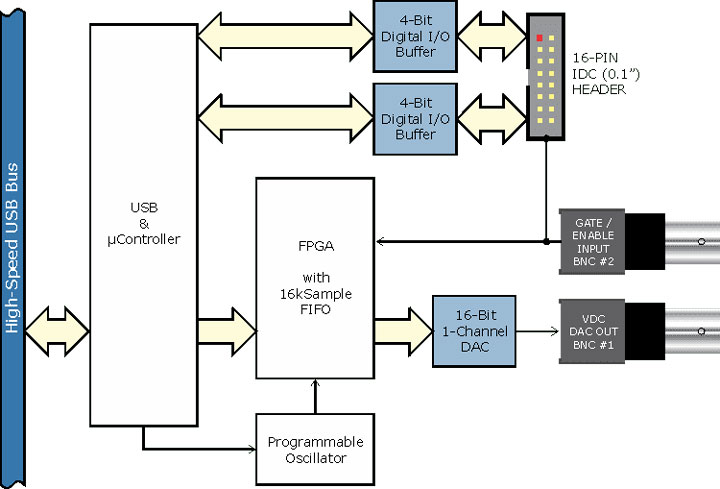

● USB USB 2.0 or 3.0+, High-Speed

- USB 3.0+ Compatible

● Output Connector BNC, female

● Analog Output 1, Single-Ended

● Resolution 16-bit

● Unipolar Ranges 2.5V, 5V, 10V

● Bipolar Ranges ±2.5V, ±5V, ±10V

● Waveform Output Rate 1kHz to 8MHz via onboard oscillator

● Relative Accuracy ±4 LSB, typical

● Differential Non-Linearity ±2 LSB, typical

● Settling Time 70ns, typical

● Output Current ±6mA

● Waveform Features 16k Sample FIFO (32k Bytes), GATE input, Onboard intelligence

● I/O Connector Right-angle IDC 16-pin (0.1″) boxed and keyed header

● Gate Connector BNC, female; also on IDC pin 16

● 5V Logic

- High-output Voltage 3.8VDC, min

- Low-output Voltage 0.55VDC max

- Sink Current 32mA

- Source Current 32mA

● 3.3V Logic

- High-output Voltage 2.4VDC, min

- Low-output Voltage 0.55VDC max

- Sink Current 24mA

- Source Current 24mA

● 5V Logic

- High-input Voltage 3.5VDC min, 5.5VDC max

- Low-input Voltage 1.5VDC max, -0.5VDC min

● 3.3V Logic

- High-input Voltage 2.0VDC min, 5.5VDC max

- Low-input Voltage 0.8VDC max, -0.5VDC min

● Size 3.550 x 3.775 inches (PC/104-size)

● Enclosure Size 3.9 x 4.075 x 1 inches

● Weight 75.5 grams
