● 4, 8, or 16 analog outputs with 12 or 16-bit resolution

● High-speed USB 2.0 device, USB 3.0 and 1.1 compatible

● Unipolar and bipolar output ranges of 0-10V, ±5V (contact factory for additional ranges)

● Real-time hardware calibration per channel

● Update outputs individually or simultaneously at speeds up to 4kHz

● Two 16-bit analog inputs and 16 lines of digital I/O

● All digital I/O lines buffered with 10mA source, 24mA sink current capabilities

● Resettable 0.5A fused +5V available to the user

● Includes external AC to 12V @ 1Amp DC regulated adapter

● Connections made via industry-standard 37-pin D-Sub connectors

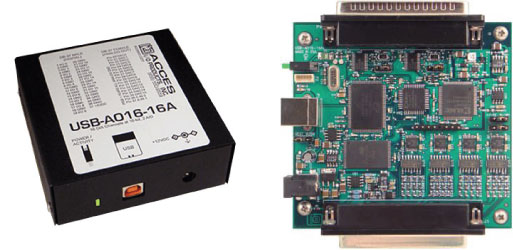

● USB/104 form-factor for OEM embedded applications

● Standard (enclosed) version includes external 12V power supply (USB-PWR-12V)

● OEM version (board only) features PC/104 module size and mounting compatibility

● Alternate micro-fit embedded USB header connector

● Custom high-speed function driver (non-HID)

● Type B USB connector features industrial strength and high-retention design

● Small, (4″ x 4″ x 1.25″) rugged, industrial enclosure

● Labview VI driver

● Now with Firmware 2.0 features!

- Onboard Watchdog Timer

- configurable power-on defaults

- digital input debouncing and latching

- digital output Pulse Width Modulation (PWM) and Matrix Mapping

● Extended operating temperature (-40° to +85°C)

● Analog output ranges (±10V, 0-5V, or nearly anything you specify!)

● RoHS Available. Please contact us for ordering information

● Support for Wind River VxWorks (call for ordering information)

● Process Control

● Light Control

● Motion Control

● Mobile Solutions

● Test Equipment

● Kiosks

● Robotics

● Machine Control

● Laboratory Monitoring and Control

● Security Systems

● Industrial Automation

● Embedded OEM
