● High-Speed USB 2.0 device, USB 3.0 compatible

● Fifteen independent 16-bit counter/timers (5 x 82C54-10)

● Clock, gate and out signals from all 15 channels buffered and accessed via 1 connector

● PC/104 module size (3.550″ by 3.775″) and mounting compatibility

● Standard configuration adaptor pre-configured for event counting, frequency measurement, pulse width measurement, or frequency generation

● Removable screw-terminal board for easy wiring

● User wiring adaptor card provided for flexible yet easy counter concatenation/configuration

● Rugged small-sized (4″ x 4″ x 1.25″) steel enclosure

● Type B USB connector features industrial strength and high-retention designe

● FACTORY OPTIONS：

- Extended operating temperature (-40° to +85°C)

- External power components and AC/DC adapter

- Screw terminals for power input provide high retention connection

- OEM (board only) version with PC/104 mounting holes and PCB footprint for added flexibility in embedded applications

- RoHS Available.

- Support for Wind River VxWorks (call for ordering information)

● Home

● Portable

● Laptop

● Education

● Laboratory

● Industrial Automation

● Embedded OEM

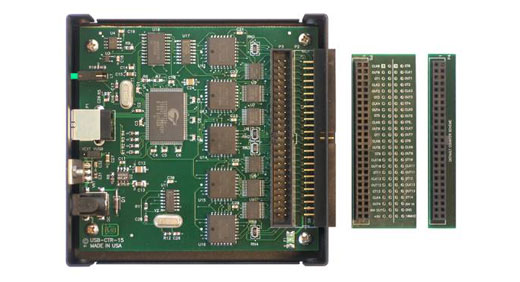

The USB-CTR-15 is available with optional cable assemblies, screw termination boards, and an optional external AC/DC power supply.
