● Small (3.5 by 3.7 in.), portable, 32-channel USB digital I/O module
● Four 8-bit ports independently selectable for inputs or outputs
● High-speed USB 2.0 device, USB 3.0 and 1.1 compatible
● All 32 I/O lines buffered with Sink 64mA / Source 32mA current capabilities
● Standard 50-pin IDC connector with key
● Removable screw terminal adaptor for easy wiring
● USB/104 form-factor for OEM embedded applications
● OEM version (board only) features PC/104 module size and mounting compatibility
● Alternate micro-fit embedded USB header connector
● Custom high-speed function driver (non-HID)
● Type B USB connector features industrial strength and high-retention design
● Small (4″ x 4″ x1.25″) rugged industrial enclosure
● Labview VI driver
● Now with Firmware 2.0 features!
- Onboard Watchdog Timer, configurable power-on defaults, digital input debouncing and latching, digital output Pulse Width Modulation (PWM) and Matrix Mapping
● Support for Wind River VxWorks (call for ordering information)
● FACTORY OPTIONS：
- Three 82C54 counter/timers
- Extended temperature (-40° to +85°C)
- External power components and AC/DC adapter
- Screw terminals for power input provide high retention connection
- OEM (board only) version with PC/104 mounting holes and PCB footprint for added flexibility in embedded applications
- 24-channel version compatible with industry standard I/O racks like Grayhill, Opto 22, Western Reserve Controls
- RoHS Available.
● Mobile Solutions
● Test Equipment
● Kiosks
● Robotics
● Machine Control
● Laboratory Monitoring and Control
● Security Systems, Energy Management
● Relay Monitoring and Control
● Sensing Switch Closures or TTL, DTL, CMOS Logic
● Driving Indicators or Recorders
● Industrial Automation
● Embedded OEM
Three 82C54 chips each include three 16-bit counter/timers factory configured in an optimal module for use as event counters, frequency output, pulse width, and frequency measurement (see the Block Diagram).

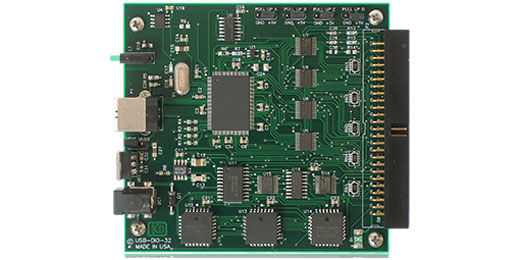

The USB-DIO-32-OEM is available with optional cable assemblies, screw termination boards, and an external AC/DC power supply. The pin connections are also compatible with industry standard I/O racks such as ACCES A24A, Grayhill, Opto 22, Western Reserve Controls, etc. with optional cable. A DIN rail mounting provision is also offered.
