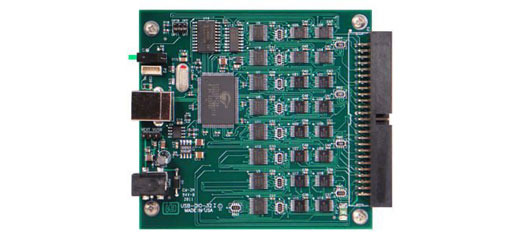

● Small (3.5 by 3.7 in.), portable, 32-channel USB digital I/O module

● 32-bits independently selectable for inputs or outputs

● High-speed USB 2.0 device, USB 3.0 and 1.1 compatible

● All 32 I/O lines buffered with Sink 64mA / Source 32mA current capabilities

● Standard 50-pin IDC connector with key

● Removable screw terminal adaptor for easy wiring

● USB/104 form-factor for OEM embedded applications

● OEM version (board only) features PC/104 module size and mounting compatibility

● Alternate micro-fit embedded USB header connector

● Custom high-speed function driver (non-HID)

● Type B USB connector features industrial strength and high-retention design

● Small (4″ x 4″ x1.25″) rugged industrial enclosure

● Labview VI driver

● Now with Firmware 2.0 features!

- Onboard Watchdog Timer, configurable power-on defaults, digital input debouncing and latching, digital output Pulse Width Modulation (PWM) and Matrix Mapping

● Support for Wind River VxWorks (call for ordering information)

● FACTORY OPTIONS：

- Extended temperature (-40° to +85°C)

- External power components and AC/DC adapter

- Screw terminals for power input provide high retention connection

- OEM (board only) version with PC/104 mounting holes and PCB footprint for added flexibility in embedded applications

- 24-channel version compatible with industry standard I/O racks like Grayhill, Opto 22, Western Reserve Controls

- RoHS Available.

● Mobile Solutions

● Test Equipment

● Kiosks

● Robotics

● Machine Control

● Laboratory Monitoring and Control

● Security Systems, Energy Management

● Relay Monitoring and Control

● Sensing Switch Closures or TTL, DTL, CMOS Logic

● Driving Indicators or Recorders

● Industrial Automation

● Embedded OEM

Three 82C54 chips each include three 16-bit counter/timers factory configured in an optimal module for use as event counters, frequency output, pulse width, and frequency measurement (see the Block Diagram).

The USB-DIO-32-OEM is available with optional cable assemblies, screw termination boards, and an external AC/DC power supply. The pin connections are also compatible with industry standard I/O racks such as ACCES A24A, Grayhill, Opto 22, Western Reserve Controls, etc. with optional cable. A DIN rail mounting provision is also offered.
