USB数字量输入/输出系列产品

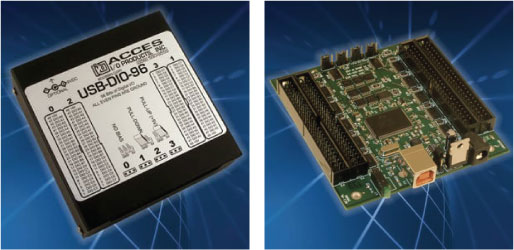

USB-DIO-96: 96-Channel Digital Input/Output Module on USB
FEATURES

● High-speed USB 2.0 device, USB 3.0 and 1.1 compatible

● 96 lines of digital I/O

● High retention type B USB connector

● Mini USB header connector in parallel with type B for stacking and embedded applications

● Twelve (12) 8-bit ports independently selectable for inputs or outputs

● All I/O lines buffered with 32 mA source, 64mA sink current capabilities

● I/O Buffers can be enabled or tri-stated under program control

● Drivers and sample application provided

● Jumper selectable I/O pulled up to 5V for contact monitoring, pulled down to ground or floating

● Jumper selectable power provided via USB cable or external power supply for higher source current capabilities

● Resettable fused +5VDC outputs per 50-pin connector

● Standard 50-pin IDC-type shrouded connectors with key

● PC/104 size (3.550 by 3.775 in.)

● Rugged industrial enclosure

● Compatible with industry standard I/O racks like Grayhill, Opto 22, Western Reserve Controls, etc.

● Labview VI driver

● Now with Firmware 2.0 features!

- Onboard Watchdog Timer, configurable power-on defaults, digital input debouncing and latching, digital output Pulse Width Modulation (PWM) and Matrix Mapping

● FACTORY OPTIONS:

- Board only version with no enclosure

- External power components and regulated AC/DC adapter

- Extended operating temperature (-40° to +85°C)

- DIN rail mounting provision

● Support for Wind River VxWorks (call for ordering information)

Applications

● Mobile Solutions

● Test Equipment

● Kiosks

● Robotics

● Machine Control

● Laboratory Monitoring and Control

● Security Systems, Energy Management

● Relay Monitoring and Control

● Sensing Switch Closures or TTL, DTL, CMOS Logic

● Driving Indicator Lights or Recorders

● Industrial Automation

● Embedded OEM

ACCESSORIES

● Direct connect spring-cage terminal boards brings out all DIO signals (STB-DIO-96).

● Additional accessories include flat ribbon cables and DIN-rail mountable screw terminal boards for remote wiring and installation.

● For isolated inputs and outputs, we have 2 types of accessories:

- Our low cost IIB-24 provides optically isolated inputs to any of our 50-pin connectors via one of our cables.

- Our IOB-96 has High-Side Power MOSFET outputs that mate directly to the board only (-OEM) versions of our products.

● To make use of the miniature embedded USB header connector, we offer a variety of embedded OEM USB cables.
