● 16 individually optically isolated inputs (channel to channel and channel to ground)

● Polarity insensitive AC/DC inputs accept up to 31 VDC or AC RMS

● Jumper selectable filtering per input channel for AC or voltage transients

● 16 optically isolated fully protected low-side FETs capable of sinking up to 500mA each

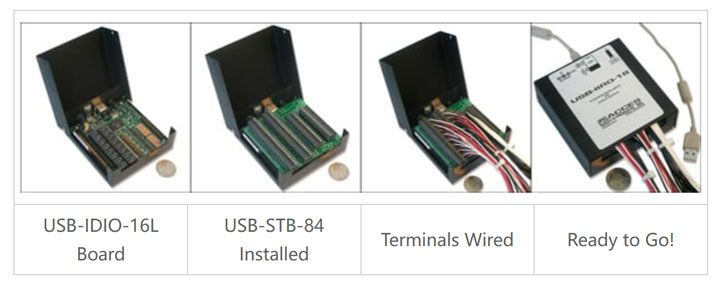

● Internal removable screw terminal board for easy wiring

● All power drawn from USB port, no external power adapter required

● USB/104 form-factor for OEM embedded applications

● Small (4″ x 4″x 1.4″) rugged industrial enclosure

● Custom high-speed function driver

● PC/104 module size and mounting compatibility

● Type B USB connector features industrial strength and high-retention design

● Now with Firmware 2.0 features!

- Onboard Watchdog Timer

- Configurable power-on defaults

- Digital input debouncing and latching

- Digital output Pulse Width Modulation (PWM) and Matrix Mapping

● FACTORY OPTIONS：

- Input only and solid state output only versions

- Eight or four input/output versions

- External power for high current capabilities

- Extended temperature and DIN rail mounting provisions

- OEM version (board only) features PC/104 module size and mounting compatibility

- RoHS compliant product

- Support for Wind River VxWorks (call for ordering information)

● Home

● Portable

● Laptop

● Education

● Laboratory

● Industrial Automation

● Embedded OEM

Available accessories include a wide variety of cables and screw terminal boards for quick and easy connectivity.
