● High-speed USB 2.0 device, USB 3.0 and 1.1 compatible

● 16 optically isolated inputs

● 16 Form C electromechanical 1A relays

● Internal, removable screw terminal board for easy wiring

● Small (4″ x 4″x 1.4″) rugged industrial enclosure

● Custom high-speed function driver

● PC/104 module size and mounting compatibility

● Type B USB connector features industrial strength and high-retention design

● Now with Firmware 2.0 features!

- Onboard Watchdog Timer

- Configurable power-on defaults

- Digital input debouncing and latching

- Digital output Pulse Width Modulation (PWM) and Matrix Mapping

● FACTORY OPTIONS：

- Eight or four input/output versions available

- Input only and relay only versions

- External power from AC/DC adapter for high current capabilities

- OEM (board only) version with PC/104 mounting holes and PCB footprint for added flexibility in embedded applications

- DIN rail mounting provision

- RoHS compliant product

- Support for Wind River VxWorks (call for ordering information)

● Home

● Portable

● Laptop

● Education

● Laboratory

● Industrial Automation

● Embedded OEM

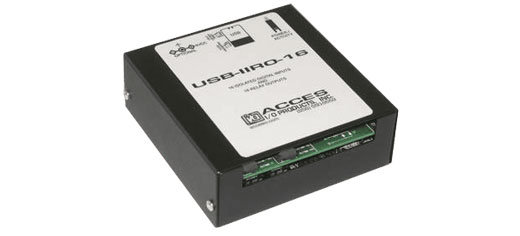

The USB-IIRO-16 is available with optional cable assemblies, screw termination boards, an external AC/DC power supply, and DIN rail mounting provisions.
