● USB 3.1 SuperSpeed, Hi-Speed, Full-Speed, Low-Speed

- Super (5Gbps) / Hi (480Mbps) Full (12Mbps) / Low (1.5Mbps)

● USB 2.0 Compatible

● USB 1.1 Compatible

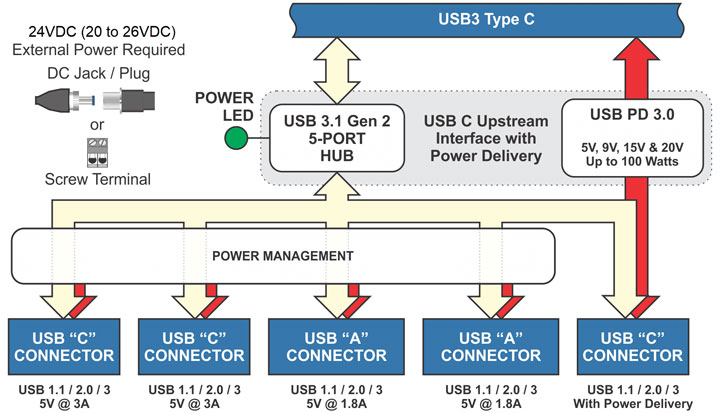

● One upstream and one downstream type C port supports the full PD3.0 standards of 20V, 15V, 9V, and 5V power at up to 5A

● Two downstream Type C ports support 3A

● Two downstream Type A ports USB Battery Charging v1.2 and Apple Charging standards (up to 1.8A)

● USB 3.0 was renamed to “USB 3.1 Gen 1” and operates at up to 5Gbps

● USB 3.1 Gen 2 supports 10GGbps

● Operating Temperature Range: -40°C to +85°C

● Storage Temperature -40° to +85°C

● Humidity 5% to 95% , non-condensing

● Board Dimension: 3.550 x 3.775 inches

● Box Dimension: 3.985 x 3.990 x 1.045 inches

● Weight:

- 304 grams (in enclosure)

- 85 grams (-OEM board only version)

● Type A Latching:

- Retention up to 50 Newtons

- Physical shock: Per EIA-364-27

- Condition H (11ms 30G)

- Vibration: Per EIA-364-28D Condition V, Test A

● Type B and A: 8 Newtons disconnect non-locking

● DC Power Jack (locking)

- Vibration: Mil-Std 202G Method 201A

- Insulation Resistance: MIL-STD 202G Method 302 Condition B

- Thermal Shock: MIL-STD 202G Method 107G

- Operating Temperature Rating: -40 °C to +105 °C(-40ºF to +221°F)

● DC Power Jack (non-locking): 2.22 Newtons disconnect

● 6’ USB3 cable Type C to Type C

● 6’ Type A to Type A option cable

● 20 to 26VDC @ 10A external power required

● Connect via screw terminals, a locking DC jack / plug or standard jack / plug

● Upstream and Downstream PD 100W @ 5V, 9V, 15V, 20V

● Downstream C: 5V @ 3A

● Downstream A: 5V @ 1.8A

● This product is designed to be in full compliance with CE requirements.
