● High-speed USB 2.0 device, USB 3.0 and 1.1 compatible

● 16-channel TTL/LVTTL digital I/O

● All 16 I/O lines buffered with 32mA sink/source current capabilities

● 8 Form C electromechanical relays switch 1A

● Custom high-speed function driver

● Alternate embedded USB connector

● All required power drawn from USB port, no external power adapter required

● Pico-I/O™ module size (60mm x 72mm) & mounting capability

● FACTORY OPTIONS：

- Extended temperature (-40°C to +85°C) operation

● Mobile

● Robotics

● UAVs

● Kiosks

● Medical

● Portable

● Automation

● Energy Management and Conservation

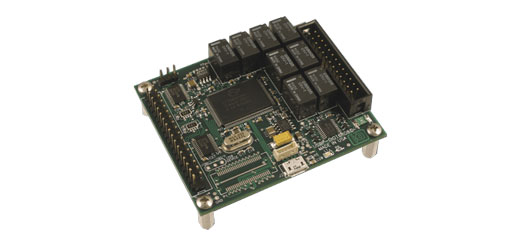

The USBP-DIO16RO8 is available with optional cable assemblies, screw terminal boards and external signal conditioning boards supporting high current relays, 120/240AC modules and optical isolated inputs.

he USBP-DIO16RO8 utilizes a high-speed custom function driver optimized for a maximum data throughput that is 50-100 times faster than the USB human interface device (HID) driver used by many competing products. This approach maximizes the full functionality of the hardware along with capitalizing the advantage of high-speed USB 2.0. The USBP-DIO16RO8 is supported for use in most operating systems and includes a free Linux (including Mac OS X) and Windows XP -> 10, both 32 & 64 bit compatible software package. This package contains sample programs and source code in Visual Basic, Delphi, and Visual C++ for Windows. Also incorporated is a graphical setup program in Windows. Third party support includes a Windows standard DLL interface usable from the most popular application programs and includes example LabVIEW VIs. Embedded OS support includes Windows Xpe, WES7, etc.
