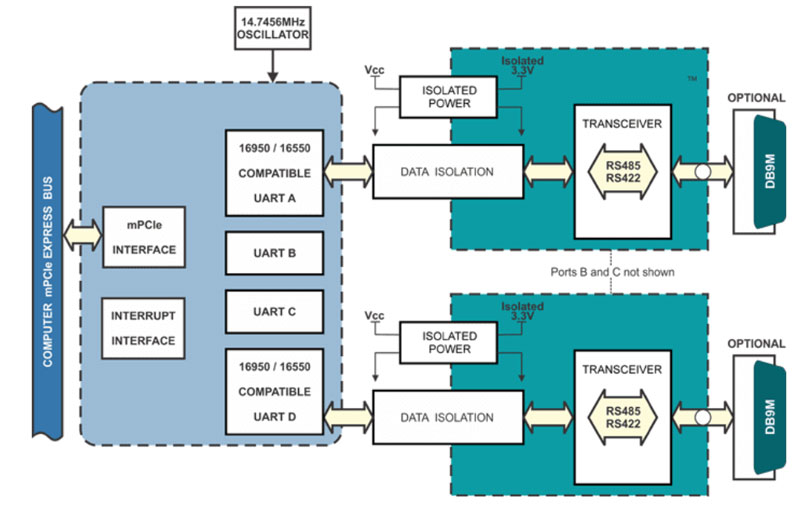

● PCI Express Mini Card: Type F1 “Full Length” V1.2
● Connector:
- I/O: Hirose DF57-5P-1.2V 5-pin, latching
- Mating: Hirose DF57H-5S-1.2C
● Serial Ports: 4 (or 2) RS-485
● UART: Quad 16C950 with 128-byte FIFO for each transmit & receive buffer
● Baud Rates: Up to 3M baud (advanced-prescaler allows a wide variety of unusual baud rates to be achieved. Up to 12Mbps via custom crystal option.)
● Character length: 5, 6, 7, 8 bits (contact factory for assistance with 9-bit data)
● Parity: Even, Odd, None, Mark, Space
● Stop Interval: 1, 1½, 2 bits
● Flow Control: Xon/Xoff, None
● Operating Temperature 0° to +70°C, optional -40° to +85°C
● Storage Temperature -40° to +105°C
● Humidity 5% to 95% RH, without condensation
● Power required: +3.3VDC @ 1.6W (typical)
● ESD Protection: ±15kV on all signal pins (IEC 61000)
● Weight:6.4 grams
● Size: length: 50.95mm (2.006″); width: 30.00mm (1.181″)
The 4-port model violates component height restriction on ″bottom″ side by up to 1.3mm. Confirm your host PC does not place components under the mPCIe footprint before ordering.
Tru-Iso
● IPC-221B
● Port-to-PC: 1500V peak (AC or DC)
● Port-to-port: 500V peak (AC or DC)
Careful attention has been paid to isolation design, including extensive keep-out zones and hand-routed circuit paths, as well as component and material selection.
● This product is designed to be in full compliance with CE requirements.
