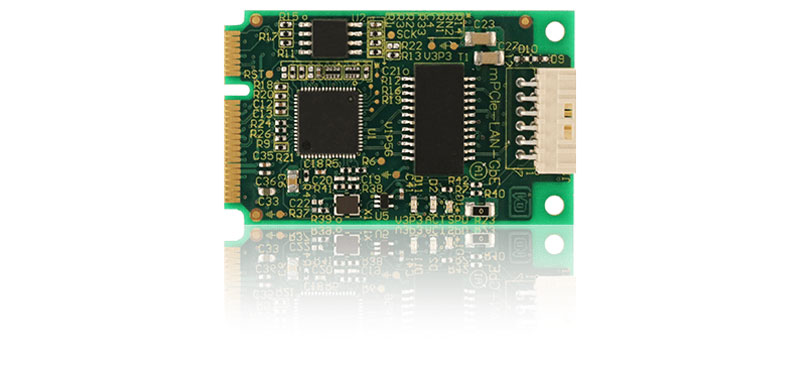

● PCI Express Mini Card (mPCIe) Type F1, with Latching I/O Connectors
● Rugged design includes overvoltage protection and buffering on all signals
● Onboard magnetics with built in isolation via transformer coupling
● Industrial Temperature (-40 to +85°C) and RoHS standard
● 10/100/1000 Base-T interface on mPCIe
● PCI Express v2.1 (2.5gt/s) interface
● Factory Options：
- Low-PPM XTAL to support IEEE 1588 Precision Timing Protocol
● Support for Wind River VxWorks (call for ordering information)
● Process Monitoring
● Manufacturing/Production Test
● Machine Control
● Monitoring and Control
● Industrial Automation
● Factory Automation
● Embedded OEM

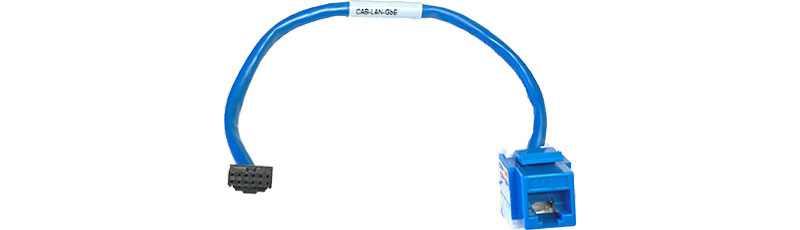

● CAB-mPCIe-LAN：9-inch panel-mount CAT6 RJ45 connector/cable (Industrial Temperature, -40 to +85°C)
● mPCIe-HDW-KIT2：2mm mounting hardware kits
● mPCIe-HDW-KIT2.5：2.5mm mounting hardware kits
Supported for use in most operating systems including Windows and Linux; embedded OS support includes DOS, XPe, WES7, WES8, IoT, VxWorks, and more.
