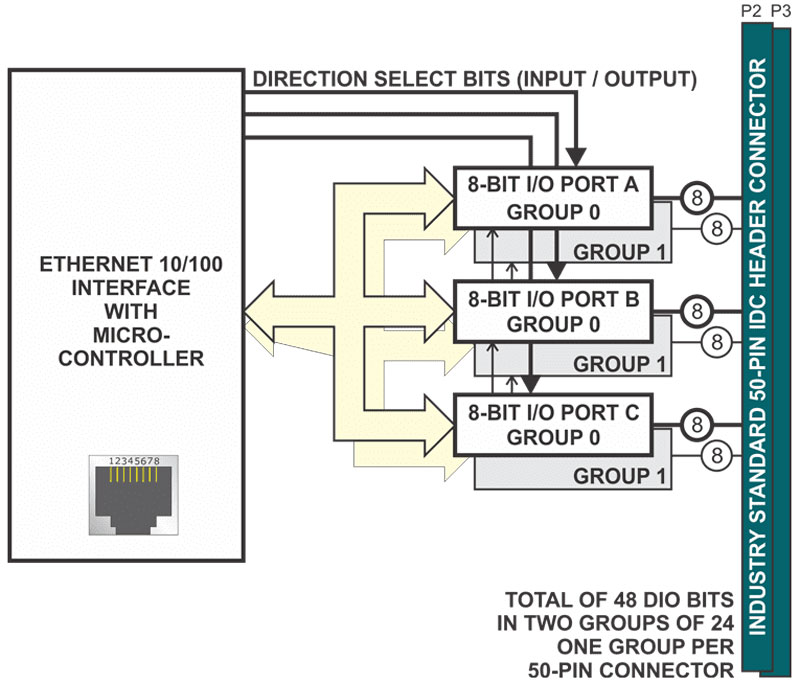

● Channels / Groups: 48 or 24 in 8-bit groups
● Inputs:
- Logic High: 2.0 VDC minimum, 5.5 VDC max.
- Logic Low: -0.5 VDC minimum, 0.8 VDC max.
● Bias Resistors: 10KΩ
● Outputs:
- Logic High: 2.0 VDC minimum, source 32 mA
- Logic Low: 0.55 VDC maximum, sink 64 mA
● Sample Rate: Up to 2500 round-trip DI/O Read/Write transactions per second (Note: performance is critically affected by network traffic)
● Ethernet 10/100 Base T, Auto-detecting
● Operating Temperature Range: 0°C to 70°C (Optional -40°C to +80°C)
● Storage Temperature Range: -40°C to +85°C
● Humidity: 5%-90%, non-condensing
● Board Dimension: 3.550 x 3.775 inches
● Box Dimension: 4.00 x 4.00 x 1.25 inches
● Connectors:
- I/O: Dual row 0.1” 50 pin shrouded headers with grounds on all even pins to suppress crosstalk
- DC power jack: 2.0mm + center post
- Screw terminals: Available via enclosure cutout
● External AC/DC 5V regulated adaptor is included
● Basic 48 bit unit: +5VDC from external regulated power supply, <300mA typical (no load)
● Auxiliary Outputs: +5VDC via 0.5A resettable fuse for both connectors
● This product is designed to be in full compliance with CE requirements.
