PCI总线隔离继电器板卡 Isolated Digital: Inputs, Relays on PCI
LPCI-IIRO-8: Low Profile Isolated Digital Input/Output PCI Card
FEATURES

● 8 optically-isolated, non-polarized CMOS compatible digital inputs accept ±31volts DC or AC rms

● 8 form C electro-mechanical relays switch up to 1 A each

● Universal PCI, PCI-X, 3.3V and 5V compatible (Call for PCI-Express availability)

● RoHS Available. Please contact us for ordering information

● Support for Wind River VxWorks (call for ordering information)

Applications

● Automatic Test Systems.

● Security Systems, Energy Management.

● Robotics.

● Relay Monitoring and Control.

● Parallel Data Transfer to PC.

● Sensing switch closures or TTL, DTL, CMOS Logic.

● Driving Indicator Lights or Recorders.

Optional Accessories

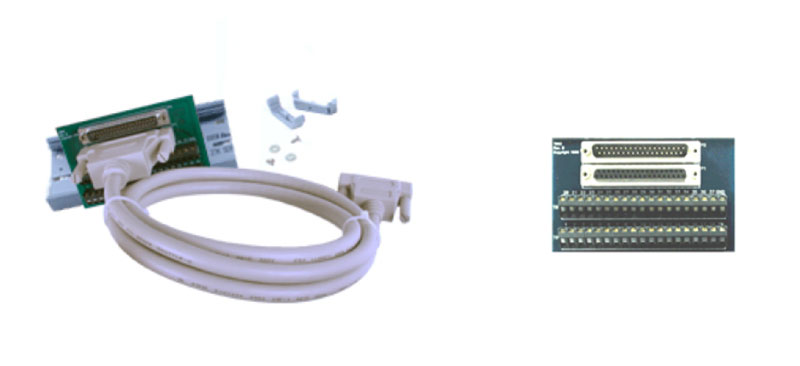

● For screw terminal connectivity, please order the Terminal Block / Cable Kit

● The Terminal Block / Cable Kit simplifies field wiring requirements by creating a direct cabled connection between a DB37M/F screw terminal block and the DB44F connector on the mounting bracket of the LPCIIIRO-8 board.

● The kit includes a 72" long DB44M to DB37M cable, DB37M/F terminal block, Snap Track, and DIN mounting clips.

SOFTWARE

Drivers for various operating systems are also provided, including active support for Windows XP -> 10 — all in both 32-bit and 64-bit flavors, and including consumer, server, and embedded varieties — as well as the 2.6 and newer Linux kernels and recent OSX / macOS versions. Many products continue to ship with driver support for Windows 95, 98, Me, NT4, and Windows 2000, but support for these operating systems is considered deprecated.
