ACCESIO PCI总线板卡

首页> 产品中心> AD/DA/DIO产品

产品分类

PCI 总线板卡产品列表

PCI多功能模拟量输入/输出板卡 Multifunction Analog Input/Output DAQ on PCI

Model	Analog Inputs	Resolution	Speed	FIFO	# DACs
LPCI-AIO16E	16 SE, 8 DIF	16-bit	250kHz	Yes	2

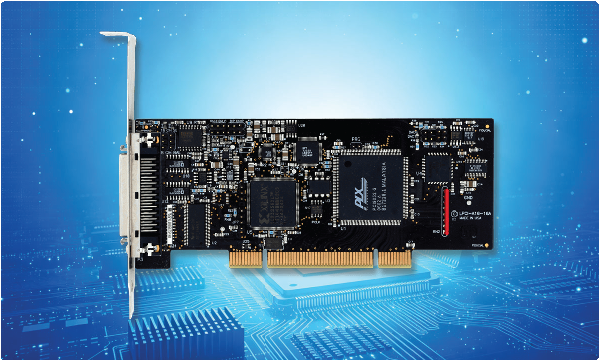

LPCI-AIO16A	16 SE, 8 DIF	16-bit	500kHz	Yes	2
PCI-A12-16A	16 SE, 8 DIF	12-bit	100kHz	Yes	2

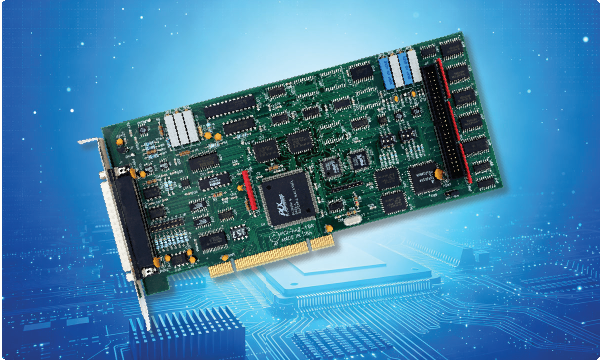

PCI-AI12-16	16 SE, 8 DIF	12-bit	100kHz	No	-
PCI-AI12-16A	16 SE, 8 DIF	12-bit	100kHz	Yes	-

PCI模拟量输出板卡 Analog Outputs on PCI

Model	Analog Outputs	Resolution	4-20mA	Digital I/O	XT
PCI-DA12-2	2	12-bit	Yes	24 I/O (8/8/4/4)	No
PCI-DA12-4	4	12-bit	Yes	24 I/O (8/8/4/4)	No
PCI-DA12-6	6	12-bit	Yes	24 I/O (8/8/4/4)	No
PCI-DA12-8	8	12-bit	Yes	24 I/O (8/8/4/4)	No
PCI-DA12-16	16	12-bit	Yes	24 I/O (8/8/4/4)	No
LPCI-AIO16E	2	12-bit	-	16 I/O (8/8)	Optional
LPCI-AIO16A	2	12-bit	-	16 I/O (8/8)	Optional

PCI总线DIO板卡 Digital (TTL/CMOS) Input/Output on PCI

Model	Digital I/O	Counters	CoS IRQ	XT
PCI-DIO-96C3	96 I/O (8/8/4/4 ×4)	9	-	Yes
PCI-DIO-120	120 I/O (8/8/4/4 ×5)	-	-	Yes
PCI-DIO-96	96 I/O (8/8/4/4 ×4)	-	-	Yes
PCI-DIO-72	72 I/O (8/8/4/4 ×3)	-	-	Yes
PCI-DIO-48JP	48 I/O (8/8/4/4 ×2)	-	-	Yes
PCI-DIO-48JPL	48 I/O (8/8/4/4 ×2)	-	-	Yes
PCI-DIO-48JPS	48 I/O (8/8/4/4 ×2)	-	Yes	Yes
PCI-DIO-48JPLS	48 I/O (8/8/4/4 ×2)	-	Yes	Yes
PCI-DIO-24S	24 I/O (8/8/4/4)	-	Yes	Yes
PCI-DIO-48	48 I/O (8/8/4/4 ×2)	-	-	Yes
PCI-DIO-48S	48 I/O (8/8/4/4 ×2)	-	Yes	Yes
PCI-DIO-24D	24 I/O (8/8/4/4)	-	-	Yes
PCI-DIO-24D-S01	24 I/O (8/8/4/4)	1	-	Yes
PCI-DIO-24D-S02	24 I/O (8/8/4/4)	2	-	Yes
PCI-DIO-24D-S03	24 I/O (8/8/4/4)	3	-	Yes
PCI-DIO-24H	24 I/O (8/8/4/4)	-	-	Yes
PCI-DIO-24H-S01	24 I/O (8/8/4/4)	1	-	Yes
PCI-DIO-24H-S02	24 I/O (8/8/4/4)	2	-	Yes
PCI-DIO-24H-S03	24 I/O (8/8/4/4)	3	-	Yes

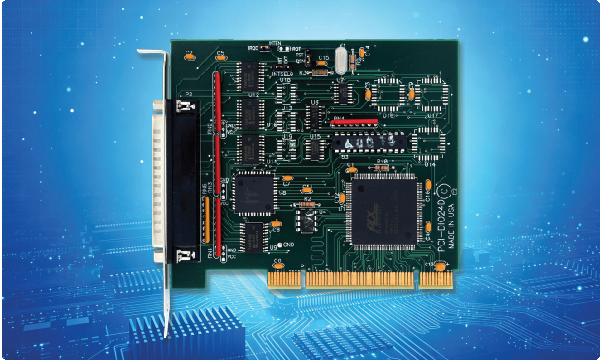

PCI-DIO-48H DISCONTINUED	48 I/O (8/8/4/4 ×2)	-	-	Yes
PCI-DIO-48HS DISCONTINUED	48 I/O (8/8/4/4 ×2)	-	Yes	Yes

Isolated Digital: Inputs, Relays (Electromechanical and Solid-State (FET)) on PCI

Model	Digital I/O	Relays/FETs	Counters	COS
PCI-IIRO-16	16 In & 16 Out	16 EM	-	Yes

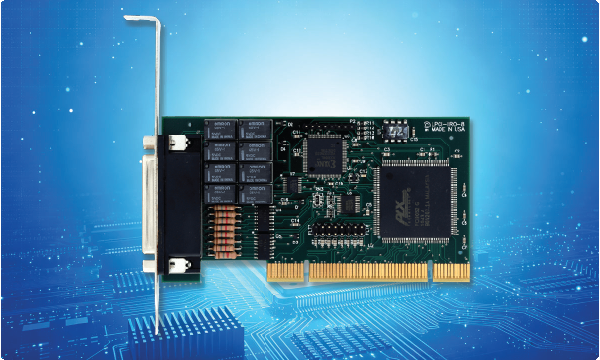

LPCI-IIRO-8	8 In & 8 Out	8 EM	-	Yes
PCI-IDI-48BC	48 In	-	-	Yes
PCI-IDI-48B	48 In	-	-	-
PCI-IDI-48AC	48 In	-	-	Yes
PCI-IDI-48A	48 In	-	-	-
PCI-IDI-32BC	32 In	-	-	Yes
PCI-IDI-32B	32 In	-	-	-
PCI-IDI-32AC	32 In	-	-	Yes
PCI-IDI-32A	32 In	-	-	-
PCI-IDI-16BC	16 In	-	-	Yes
PCI-IDI-16B	16 In	-	-	-
PCI-IDI-16AC	16 In	-	-	Yes
PCI-IDI-16A	16 In	-	-	-
PCI-IDO-48A	48 Out	48 FETs	-	-
PCI-IDO-48	48 Out	48 FETs	-	-
PCI-IDO-32A	32 Out	32 FETs	-	-
PCI-IDO-32	32 Out	32 FETs	-	-
PCI-IDO-16A	16 Out	16 FETs	-	-
PCI-IDO-16	16 Out	16 FETs	-	-
PCI-IDIO-16	16 In & 16 Out	16 FETs	-	-
PCI-IIRO-8	8 In & 8 Out	8 EM	-	Yes

PCI总线（含隔离功能）串口通信卡 Serial Communications (incl Isolated) on PCI

Model	RS-232	RS-422	RS-485	Max Baud	LRG FIFO
LPCI-COM232-4	4	None	None	921.6k	No
LPCI-COM232-8	8	None	None	921.6k	No
LPCI-COM-4SM	4	4	4	921.6k	No
LPCI-COM-8SM	8	8	8	921.6k	No
LPCI-COM422/8S1	None	8	None	921.6k	No
LPCI-COM422/8	None	8	None	921.6k	No
LPCI-COM485/8S1	None	None	8	921.6k	No
LPCI-COM485/8	None	None	8	921.6k	No
PCI-COM485-4	None	None	4	460.8k	No
PCI-COM485-4S1	None	None	4	460.8k	No
PCI-COM422-4	None	4	None	460.8k	No
PCI-COM422-4S1	None	4	None	460.8k	No
PCI-ICM-2S	None	2	2	460.8k	No
PCI-422/485-2	None	2	2	460.8k	No
PCI-COM-2S	2	2	2	460.8k	No

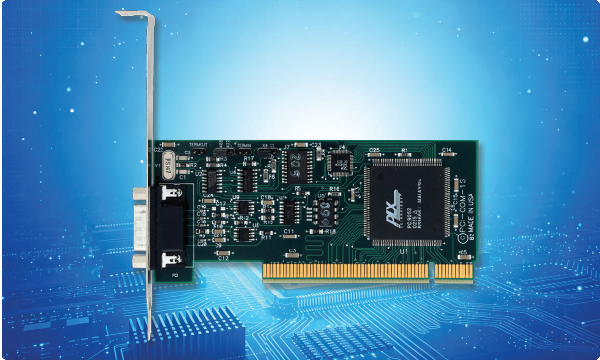

PCI-ICM-1S	None	1	1	460.8k	No
LPCI-COM-1S	None	1	1	460.8k	No
PCI-COM232-4	4	None	None	921.6k	Yes
PCI-COM232-2	2	None	None	921.6k	Yes

PCI总线看门狗板卡 Watchdogs on PCI Bus

Model	Description

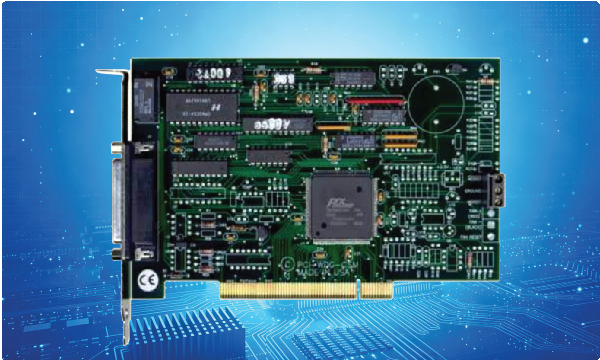

PCI-WDG-CSM	PCI Watchdog Timer Card
P104-WDG-E	PC/104 Plus Watchdog Timer Status Monitor Economy Version
P104-WDG-CSM	PC/104 Plus Watchdog Timer Status Monitor Standard Version
P104-WDG-CSMA	PC/104 Plus Watchdog Timer Status Monitor Advanced Version

PCI总线计数卡 Quadrature and Other Counters on PCI

Model	Quad Inputs	Counter Resolution	Receiver Type	Counter Type	XT

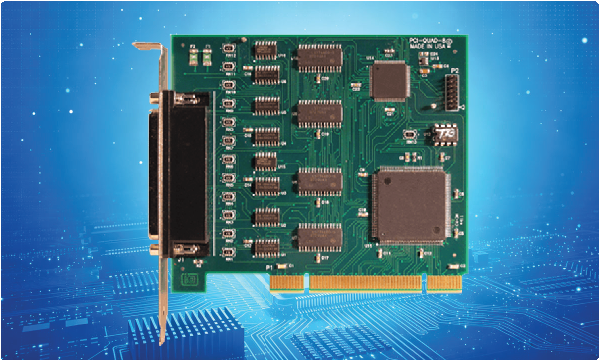

PCI-QUAD-8	8	32-bit	AM26LS32	LS7766	Yes
PCI-QUAD-4	4	32-bit	AM26LS32	LS7766	Yes
