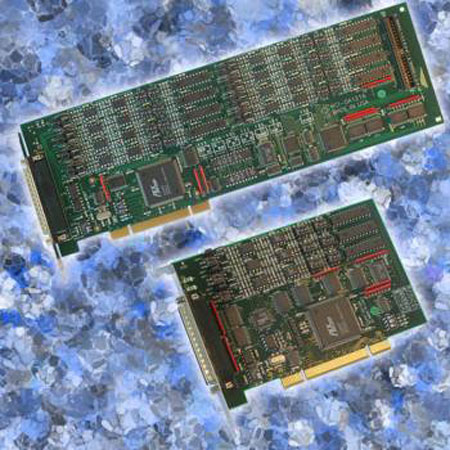

● Universal PCI, PCI-X, 3.3V and 5V compatible (Call for PCI-Express availability)

● Two, four, six, eight and sixteen (respectively), 12-Bit, double-buffered, digital-to-analog converters

● Program control provides means for either individual update or simultaneous update of the DACs. The 8 and 16 channel models can use the counter-timer to generate DAC updates, and/or IRQs. The 2/4/6 models can use an external signal in this way.

● Unique, automatic control of DAC outputs to prevent spurious outputs at power-on

● 24-bits (PCI-DA12-8/16) or 16-bits (PCI-DA12-2/4/6) digital I/O buffered with tri-stateable transceivers

● Three 16-bit Down counters (models PCI-DA12-8/16 only)

● Resettable-fused +5VDC available for external use

● RoHS Available.

● Software Drivers Included for Windows XP-> 10, both 32 & 64 bit；Support for Wind River VxWorks

● Equipment monitoring

● Environmental measurements

● Embedded data acquisition

● Education/Laboratory

● Industrial Automation

Drivers for various operating systems are also provided, including active support for Windows XP -> 10 — all in both 32-bit and 64-bit flavors, and including consumer, server, and embedded varieties — as well as the 2.6 and newer Linux kernels and recent OSX / macOS versions. Many products continue to ship with driver support for Windows 95, 98, Me, NT4, and Windows 2000, but support for these operating systems is considered deprecated.
