PCI总线DIO板卡 Digital (TTL/CMOS) Input/Output on PCI

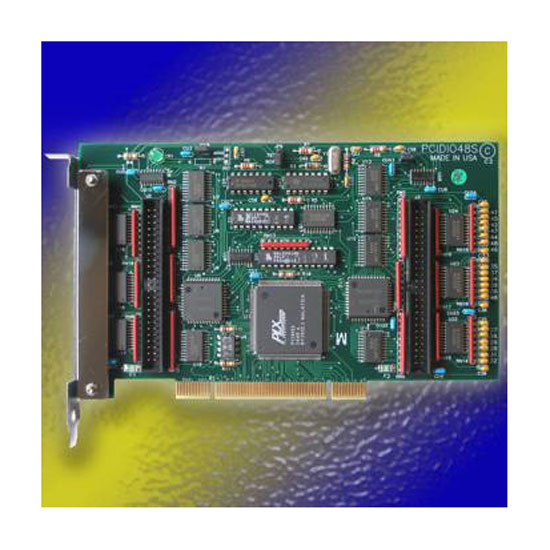

PCI-DIO-48JP: PCI bus, Digital I/O Cards w/CoS IRQ
FEATURES

● Universal PCI, PCI-X, 3.3V and 5V compatible (PCI-Express versions available)

● 48 bits of digital I/O

● Interrupt generation on input change-of-state (“S” versions)

● All I/O lines buffered on the card

● I/O buffers can be enabled/disabled under program control

● Four- and eight-bit ports independently selectable for I/O

● Pull-ups on I/O lines

● +5V supply available to the user

● 68-pin SCSI type connector

● No base address or IRQ switches to set

● RoHS Available. Please contact us for ordering information

● Support for Wind River VxWorks (call for ordering information)

Applications

● Automatic Test Systems.

● Security Systems, Energy Management.

● Robotics.

● Relay Monitoring and Control.

● Parallel Data Transfer to PC.

● Sensing switch closures or TTL, DTL, CMOS Logic.

● Driving Indicator Lights or Recorders.

ACCESSORIES

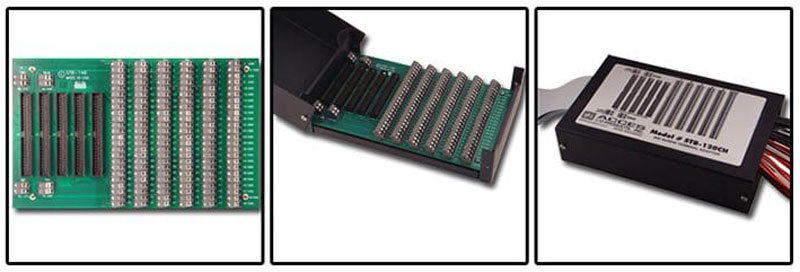

● Available accessories include a wide variety of cables and screw terminal boards for quick and easy connectivity.

SOFTWARE

Drivers for various operating systems are also provided, including active support for Windows XP -> 10 — all in both 32-bit and 64-bit flavors, and including consumer, server, and embedded varieties — as well as the 2.6 and newer Linux kernels and recent OSX / macOS versions. Many products continue to ship with driver support for Windows 95, 98, Me, NT4, and Windows 2000, but support for these operating systems is considered deprecated.
