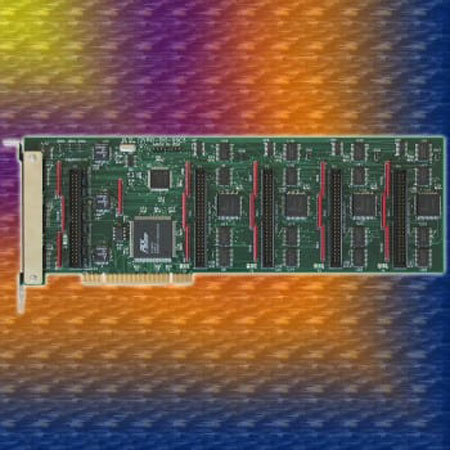

● Universal PCI, PCI-X, 3.3V and 5V compatible (Call for PCI-Express availability)

● 96 Lines of Digital Input/Output

● Four and Eight Bit Ports Independently Selectable for Inputs or Outputs

● All 96 I/O Lines Buffered by Transceivers on the Card*

● I/O Buffers can be Enabled/Disabled under Program Control

● Pull-Ups resistors on I/O Lines for Contact Monitoring etc.

● +5 VDC Output with Resettable Fuse Available on each I/O Header

● Four 50 Pin DIO Header Connectors on Board are Compatible with Industry-Standard I/O Racks

● Three Field Configurable 82C54 Counter/Timers on First 50 Pin Header

● Strain Relief for Ribbon Cables Routed through Cutout on Mounting Bracket

● Support for Wind River VxWorks (call for ordering information)

● Automatic Test Systems.

● Security Systems, Energy Management.

● Robotics.

● Relay Monitoring and Control.

● Parallel Data Transfer to PC.

● Sensing switch closures or TTL, DTL, CMOS Logic.

● Driving Indicator Lights or Recorders.

DLL’s, Windows setup programs, and a suite of sample programs are provided on CD with the purchase of the card.

Drivers for various operating systems are also provided, including active support for Windows XP -> 10 — all in both 32-bit and 64-bit flavors, and including consumer, server, and embedded varieties — as well as the 2.6 and newer Linux kernels and recent OSX / macOS versions. Many products continue to ship with driver support for Windows 95, 98, Me, NT4, and Windows 2000, but support for these operating systems is considered deprecated.
