● 16, 32, or 48 individually optically isolated AC/DC inputs

● Change-of-state detection (IRQ) on selected inputs (certain models)

● Polarity insensitive AC/DC inputs accept up to 60VDC or AC rms

● Optically isolated channel to channel and channel to ground

● Universal PCI, PCI-X, 3.3V and 5V compatible

● AC or voltage transient filtering

● Universal PCI, PCi-X, 3.3V and 5V compatible (Call for PCI-Express availability)

● RoHS Available. Please contact us for ordering information

● Support for Wind River VxWorks (call for ordering information)

● Automatic Test Systems.

● Security Systems, Energy Management.

● Robotics.

● Relay Monitoring and Control.

● Parallel Data Transfer to PC.

● Sensing switch closures or TTL, DTL, CMOS Logic.

● Driving Indicator Lights or Recorders.

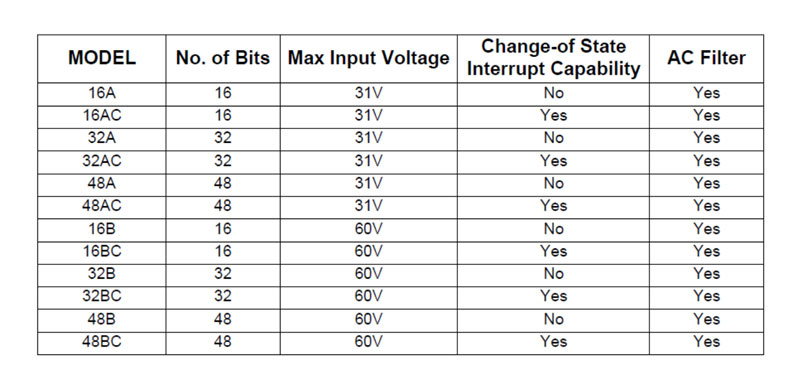

There are 48-bit, 32-bit, and 16-bit versions.

These cards are supported for use in most operating systems and include a free DOS, Linux (including Mac OS X) and Windows XP -> 10, both 32 & 64 bit compatible software package. This package contains sample programs and source code in ‘C’ for DOS, and Visual Basic, Delphi, and Visual C++ for Windows. Also incorporated is a graphical setup program in Windows. Linux support includes installation files and basic samples for programming from user level via an open source kernel driver. Third party support includes a Windows standard DLL interface usable from the most popular application programs, and includes example LabVIEW VIs. Embedded OS support includes Windows Xpe, WES7, etc.
