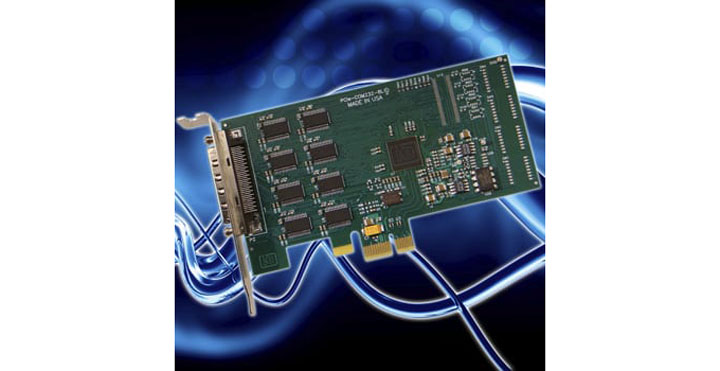

● Eight or four-port PCI Express RS-232 serial communication cards

● Low profile PCIe MD1 form factor, MD1 defines the shortest standard card length available

● High performance 16C950 class UARTs with 128-byte FIFO for each TX and RX

● Supports data communication speeds up to 921.6kbps (standard model 460.8kbps)

● ±15kV ESD protection on all signal pins

● Full modem control signals

● Software compatible with all operating systems

● Plug and Play, no jumpers to configure

● 3’ breakout cable included, terminating with industry standard DB9M connectors (no external breakout box required)

● FACTORY OPTIONS:

- Connector strengthening bracket for secure and fail-proof connections

- Extended temperature (-40°C to +85°C)

- High speed version up to 921.6kbps

- RoHS compliant version

- Support for Wind River VxWorks (call for ordering information)

- Remote wake-up enable

- Low profile bracket installed for small, embedded PCs

● Process Monitoring

● Manufacturing/Production Test

● Machine Control

● Monitoring and Control

● Security Systems, Energy Management

● Industrial Automation

● Factory Automation

● Laboratory Automation

● Embedded OEM

The card is supported for use in most operating systems and includes a free DOS, Linux (including macOS), and Windows XP -> 10, both 32 & 64 bit compatible software package. This package contains sample programs and source code in Visual Basic, Delphi, and Visual C++ for Windows. Also provided is a graphical setup program in Windows. Linux support includes installation files and basic samples for programming from user level via an open source kernel driver. Third party support includes a Windows standard DLL interface usable from the most popular application programs, and includes LabVIEW VIs. Embedded OS support includes Windows Xpe, WES7, vxWorks, etc.
