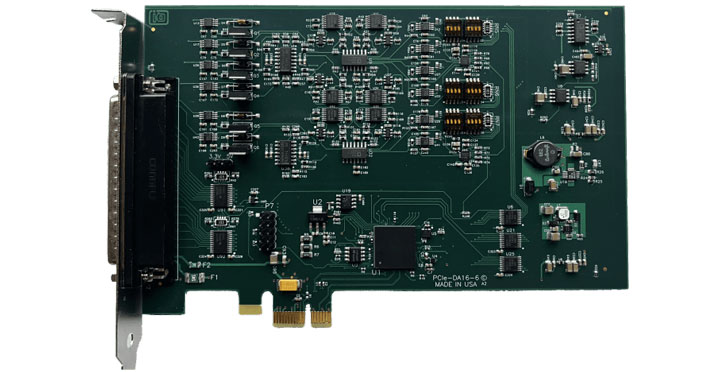

● 6-channel, 16-bit, digital-to-analog PCI Express Card

● Software / Hardware compatible with PCI-DA12-6, >125k conversions per channel

● Dip-switch selectable analog output ranges of 2.5V, 5V, 10V, ±2.5V, ±5V, ±10V, 4-20mA

● Individual or simultaneous update of the DACs

● DACs restricted at power-on to prevent spurious outputs

● 16-bits of digital I/O

● VCCIO voltage available to the user via 0.5A resettable fuse

● RoHS Available

● Industrial Temperature (-40°C to +85°C)

● Support for Wind River VxWorks (call for ordering information)

● Equipment monitoring

● Environmental measurements

● Embedded OEM

● Education/Laboratory

● Industrial Automation

● Precision Measurement

The card is supported for use in most operating systems and includes a free Linux and Windows compatible software package. This package contains sample programs and source code in C#, Delphi, and Visual C++ for Windows. Also provided is a graphical setup program in Windows. Linux support includes installation files and basic samples for programming from user level via an open source kernel driver. Third party support includes a Windows standard DLL interface usable from the most popular application programs. Embedded OS support includes the family of Windows Operating Systems including IoT. ACCES is also now offering a VxWorks driver/library for the ultimate real-time process monitoring and control solution.
