● PCI Express

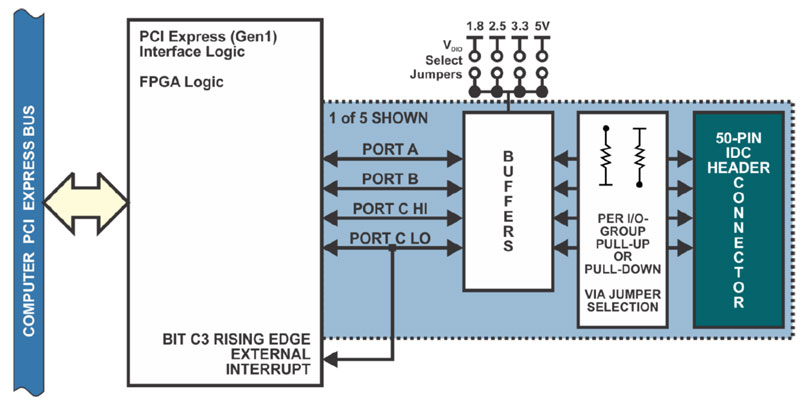

● Lines: 120; (5 Groups) Ports A, B, and C

● Type: Emulates 8255 compatible chips

● Logic Level: VCCIO

● Pull-up/down: 10k ohm, jumper selectable

● 5 Volt:

- Input Low ≤ 1.5V, ≤2µA

- Input High ≥3.5V, ≤2µA

- Output Low ≤ 0.55V @ 32mA

- Output High ≥3.8V @ 32mA

● 3.3 Volt:

- Input Low ≤ 0.8V, ≤2µA

- Input High ≥2.0V, ≤2µA

- Output Low ≤ 0.55V @ 24mA

- Output High ≥2.4V @ 24mA

● 2.5 Volt:

- Input Low ≤ 0.7V, ≤2µA

- Input High ≥1.7V, ≤2µA

- Output Low ≤ 0.5V @ 8mA

- Output High ≥1.9V @ 8mA

● 1.8 Volt:

- Input Low ≤ 0.63V, ≤2µA

- Input High ≥1.17V, ≤2µA

- Output Low ≤ 0.45V @ 4mA

- Output High ≥1.2V @ 4mA

● Operating Temperature 0° to +70°C

● Storage Temperature -40° to +105°C

● Humidity 5% to 95% RH, without condensation

● Card Dimensions: 10.5″ long by 4.20″ (106.7mm) high (seated)

● This product is designed to be in full compliance with CE requirements.
