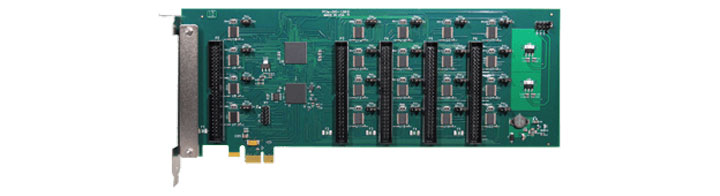

PCIe-DIO-120: PCI Express Card with 120, 96, & 72 Channel Digital I/O
FEATURES

● 120, 96, or 72 channel high-current digital I/O’s

● IRQ generation from Port C bit 3

● All I/O lines buffered

● On each 24-bit group, four and eight bit ports independently selectable as inputs or outputs

● Jumper selectable 10k ohm pull-up/pull-downs on I/O lines per four and eight bit ports

● Global jumper selectable VCCIO (5V, 3.3V, 2.5V, 1.8V) logic levels

● VCCIO voltage available to the user via 0.5A resettable fuse per 50 pin connector

● I/O ports globally tri-stateable through software

● Compatible with industry standard I/O racks like Grayhill, Opto 22, Western Reserve Controls, etc.

● FACTORY OPTIONS:

- RoHS compliant version

- Industrial temperature operation (-40°C to +85°C)

- Support for Wind River VxWorks (call for ordering information)

Applications

● Process Monitoring

● Manufacturing/Production Test

● Machine Control

● Monitoring and Control

● Security Systems, Energy Management

● Industrial Automation

● Factory Automation

● Laboratory Automation

● Embedded OEM

SOFTWARE

The card is supported for use in most operating systems and includes a free DOS, Linux (including macOS), and Windows XP -> 10, both 32 & 64 bit compatible software package. This package contains sample programs and source code in Visual Basic, Delphi, and Visual C++ for Windows. Also provided is a graphical setup program in Windows. Linux support includes installation files and basic samples for programming from user level via an open source kernel driver. Third party support includes a Windows standard DLL interface usable from the most popular application programs, and includes LabVIEW VIs. Embedded OS support includes Windows Xpe, WES7, vxWorks, etc.
