● USB 2.0 Full-speed

● USB 3.1 Compatible

● USB 1.1 Compatible

● Operating Temperature Range: -40°C to +85°C

● Storage Temperature -40° to +85°C

● Humidity 5% to 95% , non-condensing

● Board Dimension: 2.350 x 2.381 inches

● Enclosure Dimension：

- 2.5 x 2.5 x 1 inches

- 2.5 x 3.5 x 1 inches with mounts

● Weight：

- 10 oz / 284.2 grams (in enclosure)

- 1.98 oz / 56.2 grams (-OEM version)

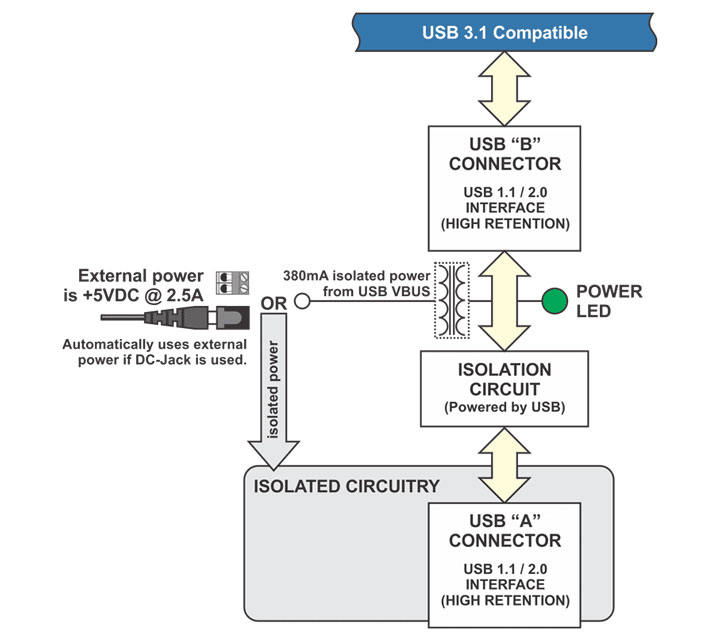

● Power Required: No external power required, 6mA min, up to 500mA from host when self-powered depending on downstream load

● Downstream: 380mA available when self-powered

● External Power: If external power supply is used, available downstream current is limited by external supply capacity

● ESD Protection: ±20kV on all signal pins (IEC 61000-4-2 Level 4)

● Tru-Iso™: IPC-2221B, UL60590-1, UL1577 (4000V isolation meets EN60601)

● Up- to Downstream: 1500V peak (AC or DC)

● Max Transient Isolation: 4000V rms

● Max Work Isolation: 863V peak

● This product is designed to be in full compliance with CE requirements.
