● Tru-Iso™ signal isolation up to 4kV meets EN60601 standards

● Upstream host port isolated from the downstream port

● Advanced EFT, Lightning, and ESD protection at ±20kV on all signal pins (air and contact)

● Full-speed USB 2.0 device, USB 3.1 and 1.1 compatible

● Rugged, industrial grade (-40°C to +85°C) operation

● Downstream port capable of low-speed (1.5 Mbps) and full-speed (12 Mbps) transfers aggregate

● LED status indicator for power from upstream port

● Compact, low profile enclosure, provision for DIN-rail mounting

● Industrial grade USB connectors feature high-retention design

● Max working isolation is 863 Volts peak (Viorm)

● Embedded miniature USB headers in parallel with type B and type A USB connectors (both upstream and downstream)

● RoHS compliant

● FACTORY OPTIONS：

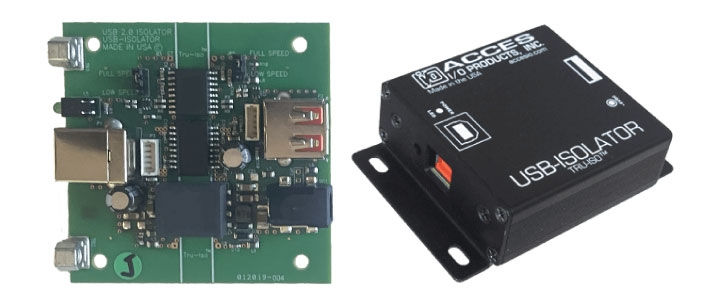

- OEM version (board only) for flexibility in embedded applications

- External power connection via screw terminals (high retention)

● Industrial Automation

● Embedded OEM

● Health and Medical Systems

● Factory Automation

● Process Control

● Transportation/Automotive

● Military/Government

Available accessories include an isolated medical-grade power supply and a wide variety of standard USB cables for quick and easy-to-use, out of the box, connectivity. To make use of the miniature embedded USB header connectors, ACCES offers an assortment of embedded micro-fit USB header cables. Mounting provisions include DIN rail and various panel mounting plates.

No driver installation is required for the USB3C-104-HUB product. Any USB compliant operating system will automatically install it. It will enumerate as a Generic Hub which uses the USB Hub Class Driver that is built into USB compliant operating systems such as Linux (including Mac OS X) and Windows.
