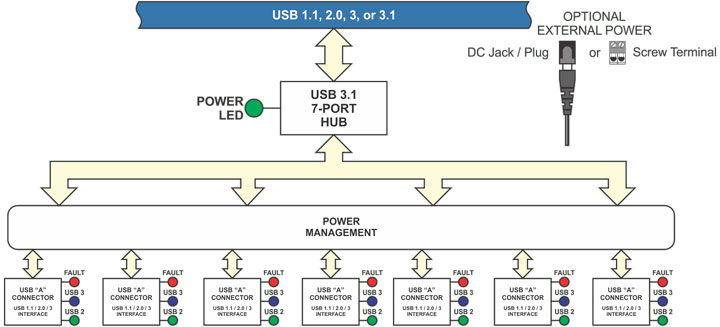

● USB 3.1 SuperSpeed, Hi-Speed, Full-Speed, Low-Speed
- Super (5Gbps) / Hi (480Mbps) Full (12Mbps) / Low (1.5Mbps)
● USB 2.0 Compatible
● USB 1.1 Compatible
● USB 3.0 was renamed to “USB 3.1 Gen 1” and operates at up to 5Gbps
● USB 3.1 Gen 2 supports 10GGbps
● Operating Temperature 0° to +70°C, optional -40° to +85°C
● Storage Temperature -40° to +85°C
● Humidity 5% to 95% , non-condensing
● Board Dimension: 3.250 × 5.750 inches
● Box Dimension: 3.46 x 6.26 x 1.0 inches
● Type A Latching:
- Retention up to 50 Newtons
- Physical shock: Per EIA-364-27
- Condition H (11ms 30G)
- Vibration: Per EIA-364-28D Condition V, Test A
● Type B and A: 8 Newtons disconnect non-locking
● DC Power Jack (locking)
- Vibration: Mil-Std 202G Method 201A
- Insulation Resistance: MIL-STD 202G Method 302 Condition B
- Thermal Shock: MIL-STD 202G Method 107G
- Operating Temperature Rating: -40 °C to +105 °C(-40ºF to +221°F)
● DC Power Jack (non-locking): 2.22 Newtons disconnect
● No external power required
● Optional external power: Connect via screw terminals, a locking DC jack / plug or standard jack / plug
● USB 3.1: Up to TBD mA at 5VDC required
- Bus Powered: Approximately TBD mA available from host for downstream ports; typical consumption at idle: TBD mA
- Externally Powered: TBD mA available for each downstream port
● USB 2.0: Up to TBD mA at 5VDC required
- Bus Powered: Approximately TBD mA available from host for downstream ports; typical consumption at idle: TBD mA
- Externally Powered: TBD mA available for each downstream port
● WI option: Wide Input power from 7VDC to 28VDC at the DC power jack or screw terminals
The USB 3.1 Gen 1 bus is specified to provide 900mA through the USB cable to most desktop environments.This gives you TBD mA available on 5VDC (900mA – TBD mA = TBD mA) for any particular application.If using more than a total of 900mA, or your USB port has less then the 900mA normally provided, remove VUSB jumper and place jumper on VEXT.You may use two power input options (power jack or screw terminals).See manual for details.
● This product is designed to be in full compliance with CE requirements.
