● 7-port USB 3.1 Gen 1 hub with data transfers up to 5Gbps

● Rugged, industrial grade (-40˚C to 85˚C) operation

● Locking upstream, downstream, and power connectors prevent accidental disconnects, perfect for USB3 Vision applications

● SuperSpeed (5Gbps), Hi-Speed (480Mbps), Full-Speed (12Mbps), and Low-Speed (1.5Mbps) transfers supported

● Supports bus-powered and self-powered modes, accessible via DC power jack and a pair of screw terminals

● LED for power, and per port RGB LEDs to indicate overcurrent fault, High-Speed, and SuperSpeed

● Compact, steel, low-profile enclosure

● RoHS compliant

● FACTORY OPTIONS：

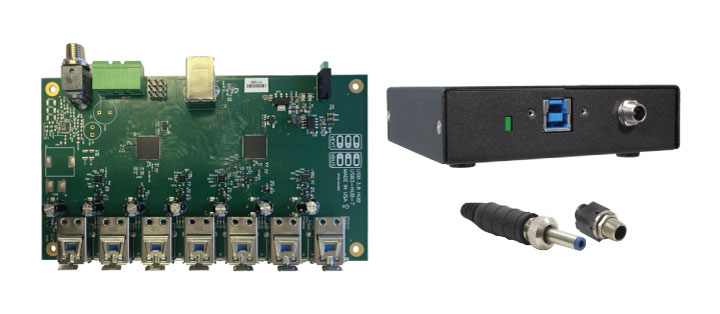

- OEM (board only) version

- Economy version equipped with standard, instead of high-retention connectors

- Wide input external power accepts from 7VDC to 28VDC at the DC power jack or screw terminals

- Tantalum capacitors for flight and space-based applications

- Conformal coating

- We offer a 4-port version that has a board assembly in a PC/104 mechanical form factor: USB3-104-HUB

● Military/Mission Critical

● Government

● Medical

● Industrial Automation

● Transportation/Automotive

● Embedded OEM

● Home

● Portable

● Laptop

● Security

● Education

● Laboratory

● Kiosk

Available accessories include the MP104-DIN for DIN rail mounting the USB3-HUB-7 and an external instrument grade power supply.
