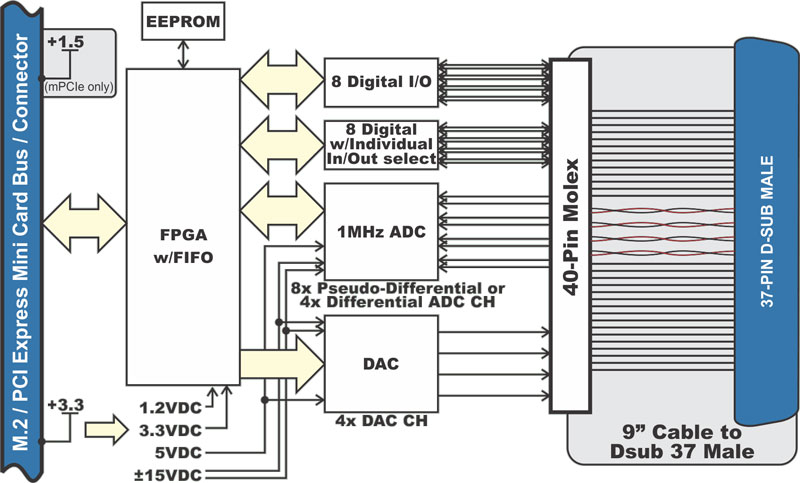

● PCI Express Mini Card: Type F1 “Full Length” V1.2
● ADC Type: Successive Approximation
● Resolution:16-bit
● Sampling Rate: 1 Msamples/second aggregate
● Number of Channels: 8 Single Ended or 4 Differential (software selectable)
● Ranges: ±12, ±10, ±5, ±2.5, ±1.25, ±0.625, ±0.3125V with 0, 0, ±5.12, ±7.68, ±8.96, ±9.60, ±9.92V common mode rejection, respectively (software selectable, per-channel)
● 4-20mA or 10-50mA: Factory Option
● Accuracy: 0.094% Full-Scale (FS) Uncalibrated, 0.0015% FS Calibrated (for best accuracy, system calibration is recommended)
● Integral Nonlinearity Error: ±0.6 LSB to ±1.5 LSB depending on gain
● No Missing Codes: 16 bits
● Input Impedance: >500MΩ
● Overvoltage Protection: Current limiting through 2 KΩ
● Crosstalk: -120dB @ 10kHz
● Number: 4
● Type: Single-Ended
● Resolution 16-bit
● Unipolar Ranges: 0-5V, 0-10V (factory option)
● Bipolar Ranges: ±2.5V, ±5V, ±10V (default)
● Conversion Rate: ≥125kHz per channel
● Settling Time: 4µs typical, 7µs max; ¼ to ¾ scale, to ±2 least-significant bits
● Output Current: ±10mA per channel
● Lines: 16, one 8-bit I/O Group and eight 1-bit I/O Groups, each software configurable as input or output
● Input voltage:
- Logic low: 0V to 0.8V
- Logic high: 2V to 5V
● Input current: ±20µA (max
● Output voltage:
- Logic low: 0V to 0.55V
- Logic high: 2.4V to 5V
● Output current:
- Logic low: 64mA sink (max)
- Logic high: 32mA source (max)
● Operating Temperature 0° to +70°C, optional -40° to +85°C
● Storage Temperature -40° to +105°C
● Humidity 5% to 95% RH, without condensation
● Power required: +3.3VDC @ 300ma (typical)
● Weight: 6.2 grams
● Size: Length: 50.95mm (2.006″); Width: 30.00mm (1.181″)
● I/O connector:
- On-card: Molex 501190-4017 40-pin latching
- Mating: Molex 501189-4010
● This product is designed to be in full compliance with CE requirements.
