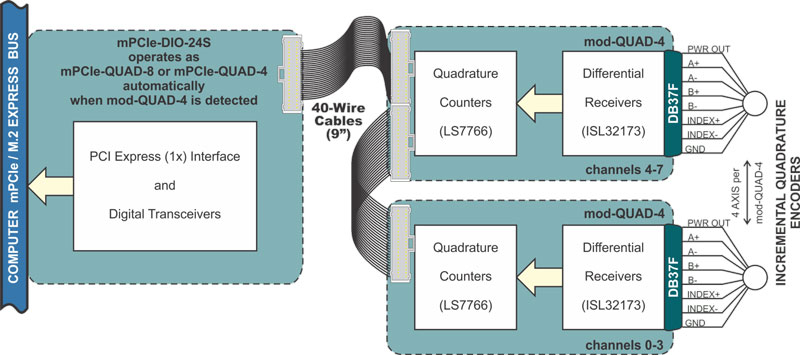

● Receiver Type: ISL32173

● Configuration: Phase A, B, and Index; Single Ended or Differential

● Channels: 8 or 4

● Common mode: -7V to 12V

● Differential Inputs: -9v to 13V

● Sensitivity: ±200mV

● Hysteresis: 30mV typical

● Impedance: Internal 48kω minimum

● Operating Temperature 0° to +70°C, optional -40° to +85°C

● Storage Temperature -40° to +105°C

● Humidity 5% to 95% RH, without condensation

● Power required:+3.3VDC @ 430mA using self power (+ encoder power); +5.0VDC @ 165mA with external power (+ encoder power)

mPCIe card characteristics

● Weight:6.2 grams

● Size: Length: 50.95mm (2.006″); Width: 30.00mm (1.181″)

● I/O connector:

- On-card Molex 501190-4017 40-pin latching

- mating: Molex 501189-4010

● This product is designed to be in full compliance with CE requirements.
