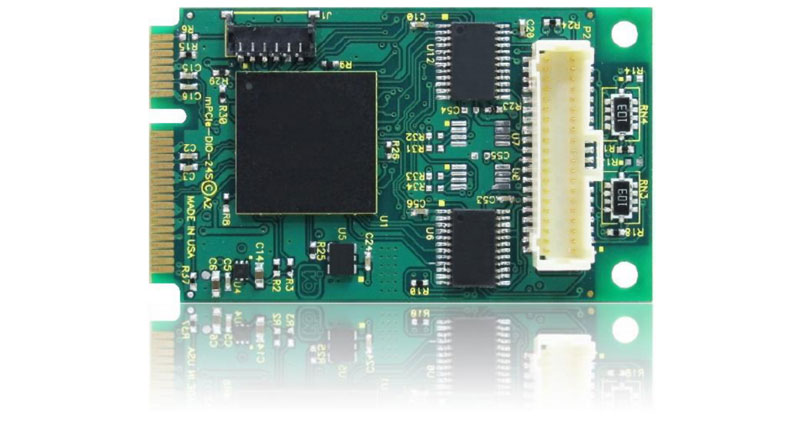

● PCI Express Mini Card (mPCIe) Type F1, with Latching I/O Connectors
● Direct Interface to Four or Eight Quadrature Encoders (A, B & Index (Z))
● Single-Ended Or Differential 3V or 5V Encoder Inputs
● 32-Bit Counters; Count Modes Include Quadrature (x1, x2, x4), Free-Run, Non-Quadrature,(Up/Down), Non-Recycle, Modulo-N, and Range Limit
● Selectable Clock Source (10MHz, 20MHz & 40MHz) (For Digital Filtering On Inputs)
● Interrupt Generation From Various Status Changes
- Select Flags for Interrupt Source (Instantaneous Or Latched)

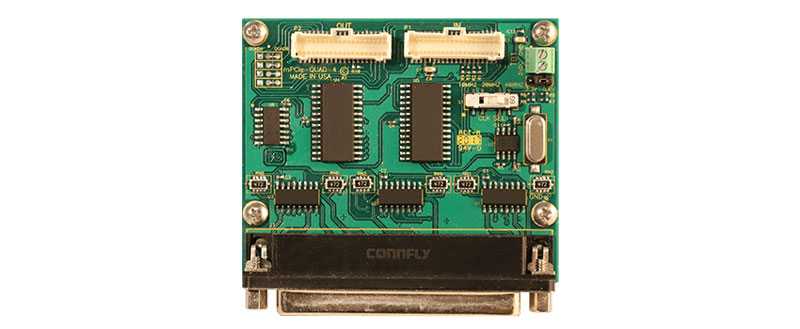

● Panel-Mountable DB-37F Four Channel Module
● Two Modules Daisy-Chainable for Eight Quadrature Inputs (Two DB-37F Connectors)
● 9” Cable(s) (228mm) Connect Between Quad Module(S) and mPCIe Card
● Available in Industrial Temperature Operation (-40°C To +85°C), RoHS Standard
● Support for Wind River VxWorks (call for ordering information)
● Factory Options：
- 2.75 inch cable between mPCIe-QUAD-8 quad boards
● Process Monitoring
● Manufacturing/Production Test
● Machine Control
● Monitoring and Control
● Industrial Automation
● Factory Automation
● Embedded OEM
● ADAP37M：37-pin Screw Terminal Board (direct plug-in)
● STB-37：37-pin Screw Terminal Board (needs male-female ribbon cable)
● mPCIe-HDW-KIT2：2mm mounting hardware kits
● mPCIe-HDW-KIT2.5：2.5mm mounting hardware kits
● characteristics
- Weight:45 grams (+ 11.8 grams for the 9″ cable)
- Size: length: 2.835″ (72.01mm); width: 2.362″ (59.99mm)
- I/O connector: On-module Female D-Sub Miniature 37-pin; mating: Male, D-Sub Miniature 37-pin
The card is supported for use in most operating systems and includes a free DOS, Linux (including macOS) and Windows compatible software package. This package contains sample programs and source code in C#, Visual Basic, Delphi, and Visual C++ for Windows. Also provided is a graphical setup program in Windows. Linux support includes installation files and basic samples for programming from user level via an open source kernel driver. Third party support includes a Windows standard DLL interface usable from the most popular application programs, and includes LabVIEW VIs. Embedded OS support includes the family of Windows Operating Systems including IoT. Full register-level documentation of all features ensures easy compatibility in any application environment.
