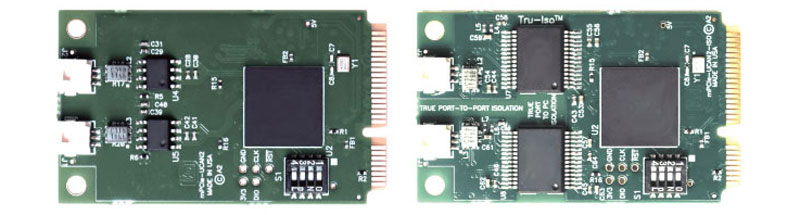

● mPCIe (USB) to Dual CAN2.0A/B/FD Ports with Extended CAN232 Interface
● Complies with CAN Specifications 2.0 A/B and FD
● Time stamp resolution at 1μS or 1mS
● CAN FD Data Bitrates up to 10MBit/S
● CAN Bitrates up to 1MB/S
● CAN Bus Connection via Industry-Standard D-Sub Mini 9-pin Male (×2) via optional cable accessory
● Microchip MCP2558FD CAN FD Transceiver
● CAN Termination as factory option
● Error Reporting for CAN Messages
● Voltage Supplied via mPCIe Bus
● RoHS and Industrial Temperature (-40°C TO 85°C) Both Standard
● ISOLATED Version (mPCIe-UCAN2-ISO) As above, plus:
- Using the Latest Isolation Technology with 5000V Isolators
- Per IPC-2221B: 1500V Isolation I/O-to-Computer on all Signals
● Process Monitoring
● Manufacturing/Production Test
● Machine Control
● Monitoring and Control
● Industrial Automation
● Factory Automation
● Embedded OEM
● CAB-mPCIe-CAN2：Two port DB9 male 9″ cable accessory kit
● ADAP9-2-S02：DB-9 Screw Terminal Accessory with Jack Screws
● mPCIe-HDW-KIT2：2mm mounting hardware kits
● mPCIe-HDW-KIT2.5：2.5mm mounting hardware kits
Supported for use in most operating systems including Windows and Linux; embedded OS support includes DOS, XPe, WES7, WES8, IoT, VxWorks, and more.
