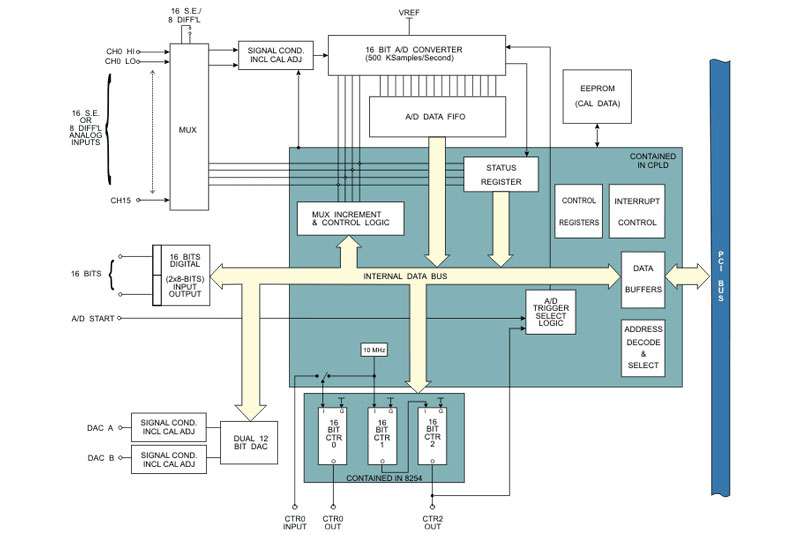

● PCI Bus
● Inputs: 16 single-ended or 8 differential
● Resolution:16-bit
● Bipolar ranges: ±0.5V, ±1V, ±2V, ±2.5V, ±5V, ±10V
● Unipolar ranges: 0-1V, 0-2V, 0-5V, 0-10V
● Sampling rate: 500KHz (250kHz for “16E” version)
● Type: Successive approximation
● Overvoltage protection: 33V
● Nonlinearity: ±1 LSB max, monotonic
● A/D FIFO: 1024 16-bit wide samples
● Calibration: Automatic with values stored in EEPROM
● Trigger Source: Software selectable: external trigger, programmable timer, program command
● Outputs: 2
● Resolution: 12-bit
● Ranges: 0-5V, 0-10V
● Relative accuracy: ±2 LSB
● Nonlinearity: ±0.2 LSB
● Settling time: 8µs
● Output current: 5mA
● Calibration: Automatic with values stored in EEPROM
● Number of I/O: 16 (programmable in groups of eight)
● Input voltage:
- Logic low: 0V to 0.8V
- Logic high: 2V to 5V
● Input current: ±1µA max
● Output voltage:
- Logic low: 0V to 0.55V
- Logic high: 2.4V min, 5.0V max
● Output current:
- Logic low: 64mA sink (max)
- Logic high: 32mA source (max)
● Type: 82C54
● A/D Pacer clock: 16 or 32-bit
● Clock Frequency: 10MHz
● Operating Temperature 0° to +70°C, optional -40° to +85°C
● Storage Temperature -40° to +105°C
● Humidity 5% to 95% RH, without condensation
● Power required: +12VDC – 25mA typical, -12VDC – 25mA typical, +5VDC – 65mA typical
● This product is designed to be in full compliance with CE requirements.
