● 16-bit resolution A/D

● Sampling rate:

- 16A version: 500Ksamples/sec (maximum aggregate)

- 16E version: 250Ksamples/sec (maximum aggregate)

● 16 single-ended or 8 differential analog inputs

● Channel-by-channel ranges of 0-1V, 0-2V, 0-5V, 0-10V, ±0.5V, ±1V, ±2V, ±2.5V, ±5V, ±10V

● A/D Start sources: Software, Timer, and External Trigger (rising or falling edge; software selectable)

● A/D Modes: Single Channel or Scan

● Offset / Gain Error Calibration

● Noise reduction with Channel Oversampling

● Over-voltage protection of -40V to +55V

● First In First Out (FIFO) A/D buffer

● Two 12-bit Digital-to-Analog (DAC) outputs

● DAC error calibration

● 16 high-current Digital I/O lines

● 16-bit programmable counter/timer

● FACTORY OPTIONS:

- A/D FIFO up to 32k samples

- Factory input range / gain of 1-100

● Equipment monitoring

● Environmental measurements

● Embedded data acquisition

● Education/Laboratory

● Industrial Automation

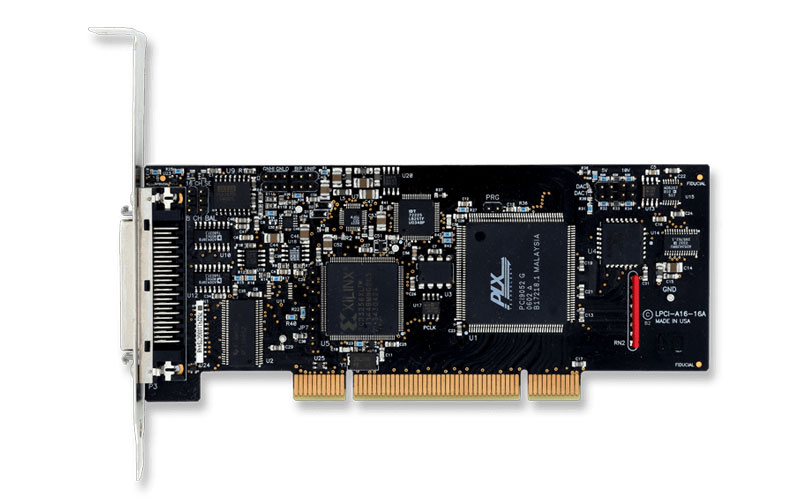

The LPCI-AIO16A is supported for use in most operating systems and includes a DOS, Linux, and Windows 95/98/Me/NT/ 2000/2003/XP compatible software package. This contains sample programs and source code in “C” and Pascal for DOS, and Visual Basic, Delphi, C++ Builder, and Visual C++ for Windows. Also incorporated is a graphical setup program in Windows. Third party support includes a Windows standard dll interface usable from the most popular application programs, along with LabView .VI samples. Linux support consists of installation files and basic samples for programming from user level via an open source kernel driver.
