● 16 Single-Ended / 8 Differential Analog Inputs

● 12-Bit Resolution, 100kHz A/D Converter

● Eight Programmable Voltage Ranges (Unipolar and Bipolar) and 4-20mA Current Range

● FIFO Data and Point List Buffers (‘A’ version). Both FIFOs 2K

● On-board Pacer Clock and Counter Timers

● Universal PCI, PCI-X, 3.3V and 5V compatible (Call for PCI-Express availability)

● Number of Analog Inputs Can Be Expanded up to 256 by use of our External Signal Conditioners/Sub-Multiplexers.

● Software Drivers Included for Windows XP -> 10, both 32 & 64 bit

● Equipment monitoring

● Environmental measurements

● Embedded data acquisition

● Education/Laboratory

● Industrial Automation

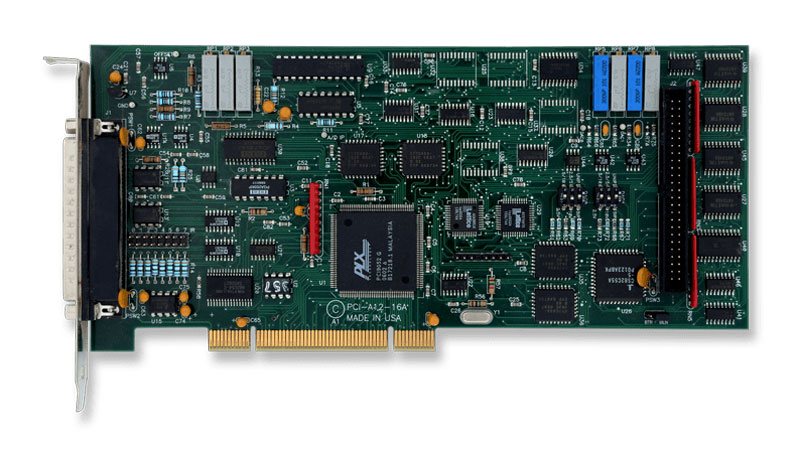

The PCI-AI12-16(A) is supported for use in most operating systems and includes a DOS, Linux, and Windows 95/98/Me/NT/ 2000/2003/XP compatible software package. This contains sample programs and source code in “C” and Pascal for DOS, and Visual Basic, Delphi, and Visual C++ for Windows. Also incorporated is a graphical setup program in Windows. Third party support includes a Windows standard dll interface usable from the most popular application programs, along with LabView .VI samples. Linux support consists of installation files and basic samples for programming from user level via an open source kernel driver.
